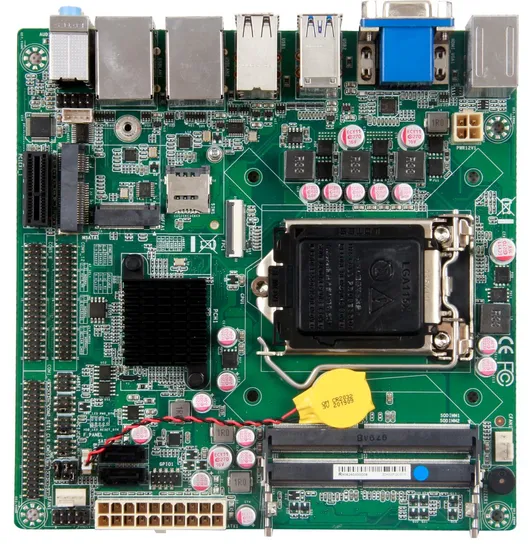

Industrial Motherboard Processor Hz-H310p-12c

Product Description

Detailed Photos

Specification	Specification
	Rear I/O	2*LAN
CPU 8th &9th Intel LGA1151 series processor		4*USB3.0
Chipset H310		10*USB2.0
GPU Intel Built-in Display Core		1*VGA
Display VGA ,HDMI,EDP		1*HDMI
Multiple Display VGA+HDMI/HDMI+EDP/VGA+EDP		1*AUDIO
USB 4*USB3.0+10*USB2.0		1*PS2
Memory 2*SO-DIMM DDR4 2400/2666MHz 32GB	Internal I/O	1*F-AUDIO PIN
udio Onboard Realtek ALC662HD;+NS4258 Power amplifier chip ; output power: 3.2W× 2(4 ohms load), 5.2W × 2(2 ohms load)		1*F_PANEL PIN
Network Onboard 2*Realtek RTL8111H Gigabit LAN		1*SPEAKER PIN
Storage 2*SATA3.0 1*M-SATA (Sata SSD)		3*COM_CONN PIN(12*COM232,COM2
WIFI 1*M.2 E Key(For WIFI+Bluetooth)		Support RS232/422/485) 2*SATA
I/O Chip 2*ITE8786E-I		1*GPIO PIN
BIOS AMI BIOS		1*SYS-FAN PIN
Power 4PIN AT* /20PIN AT* power supply		1*CPU-FAN PIN
Cooling Need to equipped 115*CPU fan		1*20PIN AT PIN
Operating 0~60ºC; 0% ~ 95%		1*4PIN AT* PIN
Environment Relative Humidity,Non-condensing		1*SIM Slot 1*FPC(EDP)
Size 170mm*170mm		1*PCIe

Function characteristics:
Intel® H310 Chipset Support Intel CoffeeLake/Coffeelake-R Desktop CPU Two SO-DIMM DDR4 up to 32GB DDR4 2666 MHz Support VGA/HDMI/eDP, Asynchronous/synchronous Display Support 4 * USB 3.0, 10 * USB 2.0, Support 2*SATAIII,1*mSATA 1*RS232, 1*RS232/422/485 Support M.2 WIFI and 3G/4GModule Line-in, Mic-in, Line-out Support PCIe *1 (Gen 3) Expansion Slot
