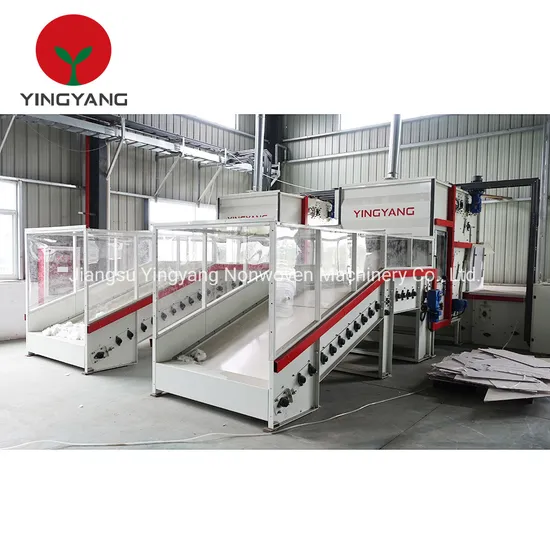

Automatic Carpet bale opener fiber opening Machine with CE Good Price Product Description
The machine is used to pre-open baled fiber and prepare the fiber to the next working procedure according to a certainty percentage. And electronic weighing system controls the amount of fiber per dump and in combination with other bale opener units, a number of fiber types can be blended together.
Production capacity:400kg/h based on 6D PET fiber Q235-A steel plates with 8mm thick are cut and welded by computer for machine frame. The spiked lattice is made of high quality engineering plastic with canvas interlining and surrounded with angle steel for supporting. Conveying lattice is made of two sub-section PVC lattices in high and low dislocation arrangement. With hydraulic bales feeding system. The diameter of the fiber average roller and fiber stripping roller are 480mm including the height of the spikes and there are 3 rows in total. Lighter beater and the distance between beater and spiked lattice can be automatically adjusted by linear actuator. Feeding is controlled by photo electric automatically and the Spike lattice is controlled by separate inverter to control the feeding amount. Larger hopper is made from Aluminum alloy, controlled by air cylinders in the middle. Auto exhaust-driven hoppers. Fiber dropping cannot be affected by airflow. It measures by accurately load cells. Cable tray are designed and fixed on the machine.
