High-Speed Facial Tissue Packing Machine for Efficient Production

Product Description

HIGH-SPEED FULLSERVO LOGSAW
Product Description
ENHANCED PRODUCT DESCRIPTION:
Automatic soft tissue packaging machine with Advanced Plastic Type Transfer System for Maximum Efficiency Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
Application: Facial tissue, cream tissue, napkin, cotton soft towel etc.
Features:The 17-shaft servo control is more intelligent, Theoperation of the moveable cantileveroontox is more convenient. Therear-mounted motor with suspension desian makethe maintenancesimpler, The spiral knife (Four sides can be used. One spiral knifeequalto four ordinary knives)is desianed with a longer service life.
Value: Our professional team escort you and ensure productionefficiency, Good squareness ofpackaged products improvesproduct competitiveness. The cutter with a long service life canreduce costs.
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Remarkable Features: Automatic soft tissue packaging machine is suitable for fully automatic single-pack packaging of film packaging facial tissues, kitchen paper, V-fold paper towels, napkin tissues.Production speed: maximum 150 packs/minute ♦Paper arrangement, feeding, bagging, forward movement, paper hooking, pusher, film pulling, cutting knife, pressing, moving sealing, lower inserting film, movable edge guide, swing ironing and intermediate feeding are all servo-driven control methods. It has the advantages of complete running function configuration, high use efficiency, simple operation, wide range of specification adaptation, quick specification conversion, convenient maintenance, and low use cost. ♦Basic operating function configuration: Fully Automatic tissue shaping function, automatic detection and speed reduction function of tissue incoming material flow, automatic alarm and shutdown function for double-pack feeding, automatic alarm and shutdown function of feeding rod jam, automatic detection of tissue height and alarm shutdown, tissue hooking shaping, jog operation, linkage operation function Vivid Sample Picture:
Comprehensive Machine Information:
Key Technical Parameters:

Basic Feature	Description	Remarks
Equipment sorting and feeding mode	Automatic intelligent material feeding	Four-stage intelligent flexible feeding mode
Design production speed	160 Pack/min	Related to packaging specifications
Guarantee stable production speed	≤150 Pack/min	Related to packaging specifications
Tissue length range	95 mm - 210 mm
Tissue height range	50 mm - 120 mm
Tissue width range	80 mm - 100 mm
Mould	3 sets	Finished product size, beyond the scope can be customized Standard configuration, the specific packaging size specifications are drawn up by the buyer
Equipment size	L 4650 mm W 3760 mm H 1600 mm
Equipment weight	≤ 2500 KG
Packaging Materials	Double side heat sealing CPP film
Packaging film thickness	0.04mm-0.05mm
Maximum diameter of roll film	500mm
Roll film paper core diameter	76mm	Comply with international common standards
Maximum width of roll film	340mm
Compressed air	Air resource pressure≥ 0.5MPA	The compressed air shall be provided by the buyer as required
Cabinet power supply	380V/50HZ	Comply with international common standards
Total power	16 KW	Servo motor, speed control motor, heating power sum
Suitable voltage changes	+/-10%	Comply with international common standards
I/O input	24VDC	Electrical control system control loop input
I/O Output	24VDC	Electrical control system control loop output
Equipment motion control mode	Mainly servo motor control
Equipment color and process	Rice ash, electrostatic spraying paint process
Packing mode	Envelope wrapping	Packaging film lap sealing, both sides heat sealing are flat

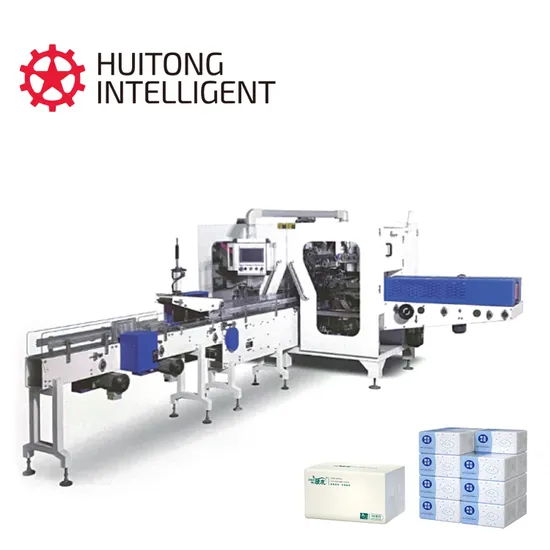

Captivating Machine Picture:
Insightful Factory Information:
CERTIFICATE:
Exhibiton:

---
