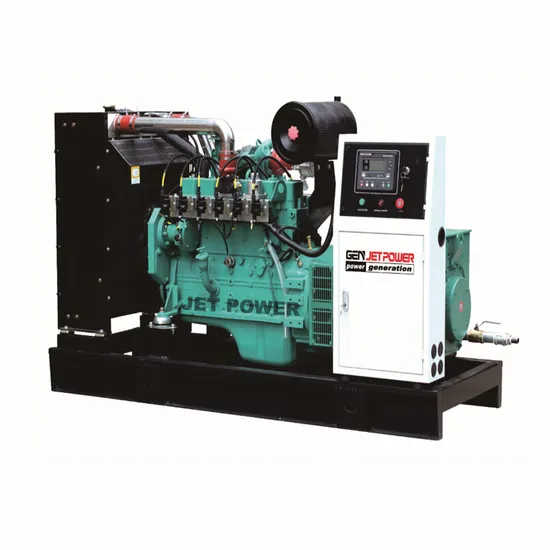

Ng-17 Natural Gas 15kVA 12kw Biogas Generator

Product Description

Technical Data Natural Gas / Biogas Generator Set
Safety - Stability - Economy - Reliability Power
1- Brand new original Natural Gas / Biogas special use water cooled diesel engine
2- Engine ECU governing and ignition system use BOSH and Germany part, with High reliability and safety
3- Genset equipped with explosion-proof safety system and Gas mixture automatically control system
4- Brand new Stanford type brushless AC alternator, 230/400V, 3-Phase, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
5- Genset equipped with radiator with engine driven fan mounted on skid.
6- Genset Digital6120U Automatic control system of diesel generator include, High speed protect, High water temperature protect,low oil pressure protect, 3 phase Voltage,current and frequency,calculagraph,output power, LED display with AMF functions (for ATS)
7- Genset equipped with MCCB
8- Anti-vibration mounting
9- 24V DC Electric start system with maintenance free battery and Battery Connect wire
10- Industrial class silencers with flexible connects and elbow
11- Genset with engine manual, controller manual, operation manual and standard engine tools kit
9- High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
Natural Gas / Biogas Generator Set
Silent / Soundproof type / Open type / Trailer type / container generator
1) Gas engine (corrugated tube, silencer, switch for battery, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover, high quality sensors, tool case, free spare parts, catalogue & manual)
2) Alterantor (air breaker, AVR, instruction manual)
3) Small control cabinet( Smartgen controller, battery float charger, Omron relay)
4) Base steel frame ( industrial shock absorbers, forklift work hole)
5) Free-maintenance battery (connecting cables)(lead-acid)
6) Strong shipping packing.
Generator technical details :

Main standards :	GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Diesel generator Prime output power:	from 5KVA to 2500KVA
Rated voltage:	120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting:	3 phase, 4wire
Rated frequency:	50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type:	Brushless, self excited or PMG optional
Alternator Insulation:	Class H
Alternator Protection:	IP21 ~ IP23
Voltage regulation:	AVR automatic control 1%
Altitude above sea level:	≤1000 meters
Ambient air temperature:	≤40°C
Relative air humidity:	≤ 90%

Model	400V / 50Hz / 1500RPM				GAS Engine								Alternator
	Standby output		Prime Output		Model / Output	Engine Brand	Bore×Stroke	Compression ratio	Engine type		Gas Fuel Consumption		Stanford Copy
	KVA	KW	KVA	KW			(MM)		Diso lasement (L)	Cylinder of Number	100% Load Natural gas consumption(m3/h)	100% Load Biogas consumption(m3/h)
NG-17	17	13	15	12	4100DNG/20KW	Gas Engine	80*90	10.5:1	1.81	4L	6.21	9	JET164D/12.8KW
NG-22	22	18	20	16	4100DNG/20KW		90*100	10.5:1	2.54	4L	7.23	10.5	JET184E/18KW
NG-28	28	22	25	20	4105DNG/35KW		90*100	10.5:1	3.857	4L	8.56	12	JET184F/22KW
NG-33	33	26	30	24	4105DNG/35KW		90*100	10.5:1	3.857	4L	9.38	14	JET184G/25KW
NG-41	41	33	38	30	B3.9G-G45/45KW	USA brand Technology Gas Engine	102*120	10.5:1	3.9	4L	10	16	JET184H/30KW
NG-70	70	56	63	50	B5.9G-G100/100KW		102*120	10.5:1	5.9	6L	16	25	JET224E/50KW
NG-110	110	88	100	80	B5.9G-G100/100KW		102*120	10.5:1	5.9	6L	25	38	JET274C/80KW
NG-140	140	112	125	100	C8.3G-G145 /145KW		114*135	10.5:1	8.3	6L	29	45	JET274E/112KW
NG-165	165	132	150	120	C8.3G-G145 /145KW		114*135	10.5:1	8.3	6L	37	56	JET274F/128KW
NG-206	206	165	188	150	L8.9G-G176/176KW		114*145	10.5:1	8.9	6L	48	81	JET274H/160KW
NG-275	275	220	250	200	NT855G-G240/240KW		140*152	11:01	14	6L	67	100	JET274K/200KW
NG-344	344	275	313	250	LYK19G-G280/280KW		159*159	11:01	18.9	6L	77	125	JET444E/260KW
NG-413	413	330	375	300	LYK19G-G330/330KW		159*159	11:01	18.9	6L	89	150	JET444FS/304KW
NG-550	550	440	500	400	LYK38G-G440/440KW		159*159	11:01	37.7	12V	116	200	JET544D/400KW
NG-688	688	550	625	500	LYK38G-G550/550KW		159*159	11:01	37.7	12V	146	251	JET544FS/500KW

Gas Generator Detailed Images
Certifications
Our Company
Product Warranty policy
1.JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
2.During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

---
