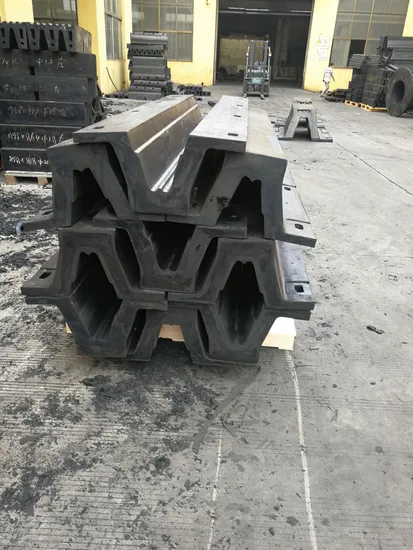

Type SA Rubber Fender Boat Bumper

Product Description

Type SA rubber fender boat bumper 1. Suitable reaction force, with higher energy absorption than cylindrical rubber fender.
2. Easily for installation.
3. Applicable for frame dock and ships due to the smaller bottom width.
Performance characteristics
(1)Ship rubber fender is with the use of high quality rubber nylon cord.
(2) Using compressed air as damping medium, the rubber can transform flexibly under pressure, with large contact area, small reaction and absorb large amount of energy.
(3) When berthing, the ship is almost at a certain angle, the ship rubber fender can realize contact in a certain angle by bringing full play to its performance.
(4) Floating on the water surface, even the ship fluctuates and sways resulting from ebb and flow and waves, the pneumatic
(5) Simple installation
(6)Long service life

Place of Origin:	China (Mainland)	Brand Name:	ZJNM	Model Number:
Part:	tyre	Material:	Ethylene-Propylene-Diene Monomer,Nature Rubber	Certification:	ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS combined with ISO
Item:	Marine Rubber Fender	Standard:	ISO9001; ISO17357:2002	Type:	CY type,CO type,W type,M type,Super Arch

Dimensions of our arch fender

Specification (H*B*L)	Size(mm)
	H	L	B	L1	B1	B2	C	P	d	e	f	h	n
SA*A300*225*1000	300	1000	225	1150	600	490	140	870	35	105	140	33	2
SA*A300*225*1500	300	1500	225	1650	600	490	140	685	35	105	140	33	3
SA*A300*225*2000	300	2000	225	2150	600	490	137.5	625	35	105	140	33	4
SA*A300*225*2500	300	2500	225	2650	600	490	140	790	35	105	140	33	4
SA*A300*225*3000	300	3000	225	3150	600	490	145	715	35	105	140	33	5
SA*A300*225*3500	300	3500	225	3650	600	490	140	674	35	105	140	33	6
SA*A400*300*1000	400	1000	300	1200	800	670	150	900	41	120	165	40	2
SA*A400*300*1500	400	1500	300	1700	800	670	150	700	41	120	165	40	3
SA*A400*300*2000	400	2000	300	2200	800	670	147.5	635	41	120	165	40	4
SA*A400*300*2500	400	2500	300	2700	800	670	150	800	41	120	165	40	4
SA*A400*300*3000	400	3000	300	3200	800	670	150	725	41	120	165	40	5
SA*A400*300*3500	400	3500	300	3700	800	670	150	680	41	120	165	40	6
SA*A500*375*1000	500	1000	375	1250	1000	840	160	930	47	140	180	45	2
SA*A500*375*1500	500	1500	375	1750	1000	840	160	715	47	140	180	45	3
SA*A500*375*2000	500	2000	375	2250	1000	840	157.5	645	47	140	180	45	4

The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers' request.
