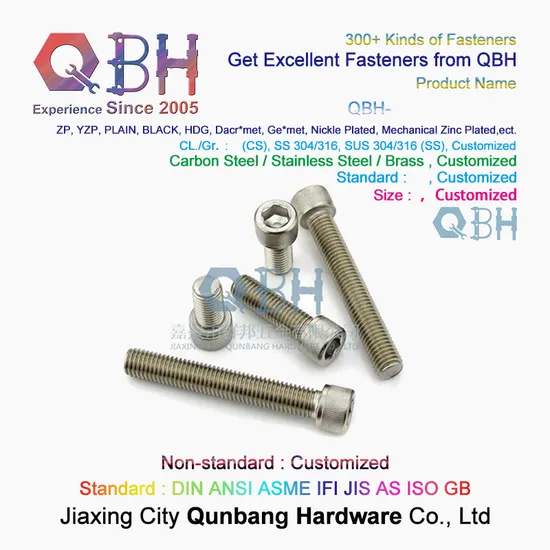

Professional Factory DIN912 Hex Socket Head Allen Bolt Screw

Product Description

Product Description:

Product name	HEX SCOCKET HEAD SCREW
Standard	DIN912
Size	M5-M42
Class	A2-70
Material	304
FINISH:	POLISH.
Packing	bulk/boxes in cartons, bulk in poly bags/-buckets, etc
Pallet	solid wood pallet, plywood pallet, ton box/bag, etc.
Mechanical Properties	DIN267.1

unit:mm

d	P	b	dk		k		S		t
			msx	min	max	min	max	min	min
M5	0.8	22	8.72	8.28	5	4.82	4.095	4.02	2.5
M6	1	24	10.22	9.78	6	5.7	5.14	5.02	3
M8	1.25/1	28	13.27	12.73	8	7.64	6.14	6.02	4
M10	1.5/1.25/1	32	16.27	15.73	10	9.64	8.175	8.025	5
M12	1.75/1.5/1.25	36	18.27	17.73	12	11.57	10.175	10.025	6
M14	2/1.5	40	21.33	20.67	14	12.57	12.212	12.032	7
M16	2/1.5	44	24.33	23.67	16	15.57	14.212	14.032	8
M18	2.5/2/1.5	48	27.33	36.67	18	19.48	14.212	14.032	9
M20	2.5/2/1.5	52	30.33	29.67	20	21.48	17.23	17.05	10
M22	2.5/2/1.5	56	33.39	32.61	22	23.48	17.23	17.05	11
M24	3/2	60	36.39	35.61	24	26.48	19.275	19.065	12
M27	3/2	66	40.39	39.61	27	29.48	19.275	19.065	13.5
M30	3.5/2	72	45.39	44.61	30	32.38	22.275	22.065	15.5
M33	3.5/2	78	50.39	49.61	33	35.38	24.275	24.065	18
M36	4/3	84	54.46	53.54	36	41.38	27.275	27.065	19
M42	4.5/3	96	63.46	62.54	42	47.38	32.33	32.08	24

Free Samples for standard fastener from Jiaxing City Qunbang Hardware

QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.

Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry! Thanks & best regards!
