US$15,000.00-235,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Material Processed
Plastic Flakes
Computerized
Computerized
Certification
QS, ISO9001:2008, CE
Heating Method
Electricity to Heating Oil
Material Status
Powder, Pellets, Pieces, Scraps, Chips
Function
Improve Material Viscosity
Vacuum Degree
Less Than 1PA
Maximum Temperature
250°c
Working Time
26-32 Hours(According to Target IV)
Nitrogen
Necessary for Pet Scraps
Transport Package
Wooden Pallet and Film Cover
Specification
20m* 20m* 7m
Production Capacity
80 Sets / Year
Product Description
Product Description
Raw material: Resin or recycled PET, PA6, PA66, PTT

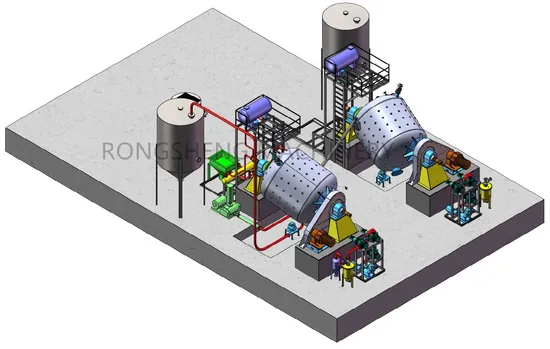

The solid state viscosity increasing device consists of: drum reactor, thermal oil heating and cooling system, vacuum system, electrical PLC (or DCS) control, etc.
And optional: automatic feeding and conveying, pre-crystallization system, automatic discharging and conveying, raw material dust removal and screening, nitrogen protection, etc.
The increase in IV(Intrinsic Viscosity) is based on the molecular characteristics of the copolymer. At the critical temperature, thanks to the special extreme vacuum technology and high-precision temperature control, small molecular weight chemicals will be extracted along with the vacuum pipeline and the copolymer molecular chain will be extended so that In order to meet the requirements of increasing viscosity, IV(Intrinsic Viscosity) can be steadily increased and high-purity and high-viscosity PET can be obtained, which can be used in spinning, industrial yarn, POY, FDY, packaging sheet, preform production and bottle-to-bottle recycling.
Product Parameters
Machine model: From 5 L to 46 cubes, Customized according to production capacity Out-put capacity: From 1Kg/ batch to 23000kg/ batch One batch time: 26 hours to 36 hours (Depends on target IV and original IV)
Detailed Photos
After Sales Service
It has a on-line system that can monitor customer process parameters and machine running at any time. When there is a problem with the customer's equipment, our company can quickly determine equipment problems and process problems through the on-line system. For some problems that cannot be solved by customers, our company will send engineers directly. Guarantee period and after-sales services:13 months since date of bill of lading During this guarantee period, Rongsheng will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, Rongsheng will provide the buyer spare parts at cost price. Long-term service: Rongsheng will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
Certifications
Installation Instructions
After all machines are delivered to customer's factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc. Rongsheng will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer's factory. Engineer will give free training lessons to labors in buyer's factory. In some countries like India, Vietnam, we have local person who can go to customer factory for machine installation and testing.
Our Advantages
1. We are a original factory.
2. We have our own technical team
3. We can provide a complete set of solutions, SSP, LSP, washing and recycling machine, bottle to bottle, pelletizing machine.
4. We can provide upstream and downstream solutions, such as recycling equipment, granulation equipment, dryer, conveyor.
5. You can visit local equipment directly in some countries.
6. If you come to visit our company, we can take you to vist running machines in customers factory in China. To prove our company's professionalism and the good quality of our company's equipment.
Contact me
If you are interested in it, please feel free to contact me. Many thanks.
