Bsj-ABA Three-Layer Co-Extrusion Film Blowing Machine

Product Description

Product Description

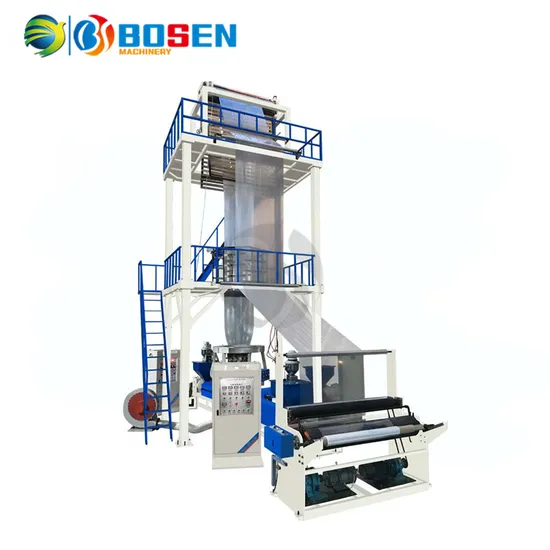

BSJ-ABA Three-Layer Co-Extrusion Film Blowing Machine
Used for blowing PE ( HDPE LDPE) film , which is widely used for as laminating film, packing film ,agriculture film , film for textile, clothing bag,etc.
Detailed Photos
Product Parameters

Model	BSJ-ABA45/50-700	BSJ-ABA50/55-900	BSJ-ABA55-1300
suitable Materail	HDPE
Max film width (mm)	600/800	800/1000	1200
Film Thickness	HD:0.008-0.08
Max Extrusion output	70KG/H	100KG/H	130KG/H
Gear Box	146/173	173/180	180X2
Screw Diameter(mm)	45/50	50/55	55X2
Screw L/D Ratio	28:01:00
Screw Materail	38 CRMOALA BIMATIC
Barrel's Materail	38 CRMOALA
Barrel's Cooling Fan	250WX3X2	250WX3X2	250WX3X2
Driving Motor (kw)	15/18.5	18.5/22	22X2
Thermo Control Zone	3X2	3X2	3X2
Die Size(mm)	HD:60/80	HD80/100	HD120/150
Screen Chnager	STANDARD MANUAL
Air ring	DOUBLE LIP AIR RING
Cooling Blower (KW)	4	5.5	5.5
Take up Roller Width (mm)	138X650	138X850	138X1300
Type of Winder	SURFACE FRICTION WINDER
winder Roller Width (MM)	700	900	1300

Certifications
Packaging & Shipping
Company Profile
After Sales Service
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.
