Mini lathe machine metal D280V benchtop small lathe for metal cutting

Product Description

Product Description
Small Manual Lathe Machine D280V Main Features:
1. Guaranteed concentricity precision of the main spindle less than 0.009mm.
2. Concentricity precision-lathe chuck smaller than 0.05mm.
3. Easy operating gear box has various speeds and thread cutting function.
4. Induction-hardened and ground prismatic bed made from cast iron.
5. High precision and hardened spindle.
6. Safety magnetic and lock key European-standard switch.

Model	D280V
Max. swing over the bed	280mm
Max. length of workpiece	700mm
Max. swing over cross slide	170mm
Width of bed	180mm
Spindle bore	26mm
Spindle taper	MT4
Spindle speed range(variable speed)	50-2500rpm
Metric threads range	0.2-4mm
Inch threads range	8-56TPI
Top slide travel	70mm
Cross slide travel	140mm
Tailstock quill travel	70mm
Tailstock quill taper	MT2
Motor power	850w
Packing size(L×W×H)	1450×700×680mm
N.W.	200kg
G.W.	230kg

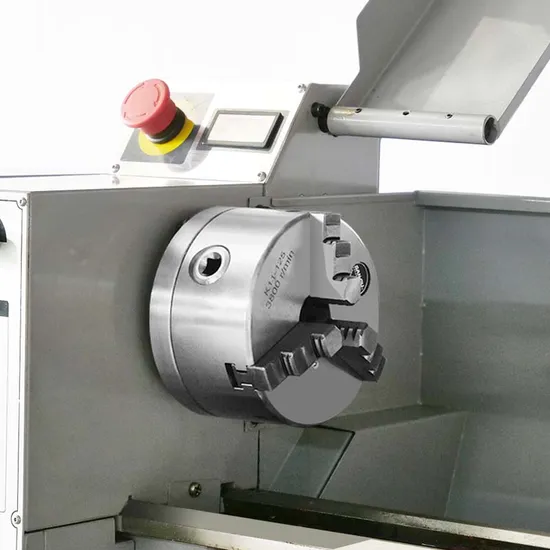

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
