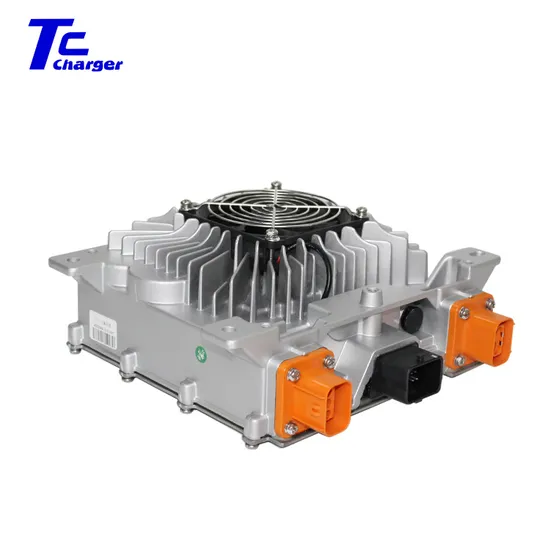

Tc Charger 3.3kw EV Car Charger Obc HK-Mf-48-40 on Board Charger with CE

US$500.00
1-20 Pieces
US$450.00
21-99 Pieces
US$400.00
100+ Pieces

Basic Info.

Model NO.
HK-MF-48-40
Usage
Electric Vehicle
Interface
Other
Color
Silver
Input Voltage
AC90V~264V
Product Name
on Board Charger
Frequency
45Hz~65Hz
Mechanical Impact and Vibration Grade
QC/T 895-2011
Protection Grade
IP67
Type of Cooling
Enforce Air Cooling
Output Voltage
48
Output Voltage Range
35~70V
Output Current
40A
Output Power
2000W@220VAC /1600W@110VAC
Size
198(Length) X 244(Width) X 95(Height)(Fan-Cooled)
Transport Package
Carton
Specification
198(length) x 244(width) x 95(height)(fan-cooled)
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month

Packaging & Delivery

Package Size
198.00cm * 244.00cm * 95.00cm
Package Gross Weight
5.500kg

Product Description

Product Description
Basic Specification Protection grade IP67
Input voltage range AC90V~264V Operation temperature - 40ºC~85ºC
Input current 16A Storage temperature - 40ºC~105ºC
Frequency 45Hz~65Hz Charging control CAN or Enable
Power factor ≥0.99 Size 198(length) x 244(width) x 95(height)(fan-cooled)
Efficiency at full-loading ≥93% Protection Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature
Mechanical impact and vibration grade QC/T 895-2011 Cooling way Enforce Air Cooling, liquid-cooling

Accessories
Product Parameters
OBC 3.3KW
Model Type of cooling Output voltage Output voltage range Output Current Output power Net Weight (kgs) Gross Weight (kgs) Dimension (CM)
HK-MF-48-40 Enforce Air Cooling 48 35~70V 40A 2000W@220VAC /1600W@110VAC 4.6 5.6 36*32*20.5
HK-MF-108-32 Enforce Air Cooling 108V 36~145V 32A 3300W@220VAC 1600W@110VAC 4.6 5.6 36*32*20.5
HK-MF-144-23 Enforce Air Cooling 144V 50~198V 23A 3300W@220VAC 1600W@110VAC 4.6 5.6 36*32*20.5
HK-MF-216-14 Enforce Air Cooling 216V 70~290V 14A 3300W@220VAC 1600W@110VAC 4.6 5.6 36*32*20.5
HK-MF-312-10 Enforce Air Cooling 312V 110~440V 10A 3300W@220VAC 1600W@110VAC 4.6 5.6 36*32*20.5
HK-MF-540-06 Enforce Air Cooling 540V 170~650V 6A 3300W@220VAC 1600W@110VAC 4.6 5.6 36*32*20.5
