Precision lathe Electric CNC ZK5150C Multi purpose lathe machine

Product Description

Electric CNC drill machine price ZK5150C mini CNC drilling Machine Product Description
Product Parameters
Product main technical parameters:

Specifications		Unit	ZK5140C	ZK5150C	ZK5140C/1	ZK5150C/1	ZK5140C/2	ZK5150C/2
Max. drilling diameter		mm	40	50	40	50	40	50
Max. Feed resistance		N	16000	20000	16000	20000	16000	20000
Max. Torque of spindle		Nm	350	400	350	400	350	400
Spindle taper		Morse	4	5	4	5	4	5
Main motor power		kw	3		3		3
Range of spindle speed		r/min	31.5-1400		31.5-1400		31.5-1400
Feed range	X.Y axis	mm/ min	0.6-3000		0.6-3000		0.6-3000
		mm/ min	0.3-2000		0.3-2000		0.3-2000
	Rapid feed Z axis	mm/ min	6000(9000)		6000(9000)		6000(9000)
		mm/ min	3000(4500)		3000(4500)		3000(4500)
Spindle box stroke		mm	470		470		470
The axis of travel	Table X-axis	mm	600		600		1000
	Table Y-axis	mm	400		600		600
	Spindle Z-axis	mm	250		250		250
Distance between spindle nose to worktable		mm	0-600	0-560	0-600	0-560	0-600		0-560
Size of worktable (L*W )		mm	850×450		850×650		1250×650
Positioning accuracy (X and Y)		mm	0.05(0.04)		0.05(0.04)		0.05(0.04)
Repeat positioning accuracy (X and Y)		mm	0.02(0.015)		0.02(0.015)		0.02(0.015)
Dimensions (L*W*H)		mm	1550×1530×2512		1550×1740×2512		1800×1854×2512

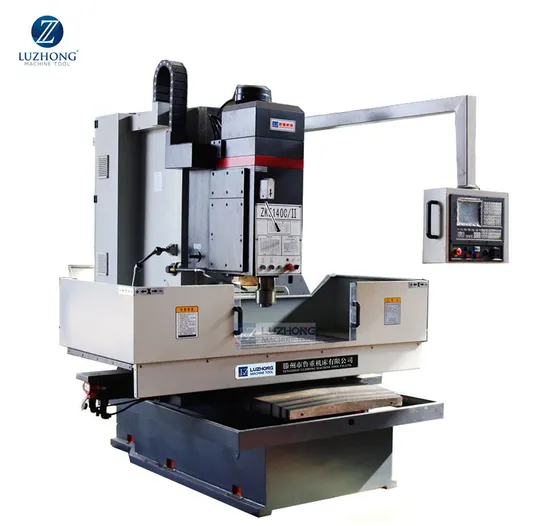

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
