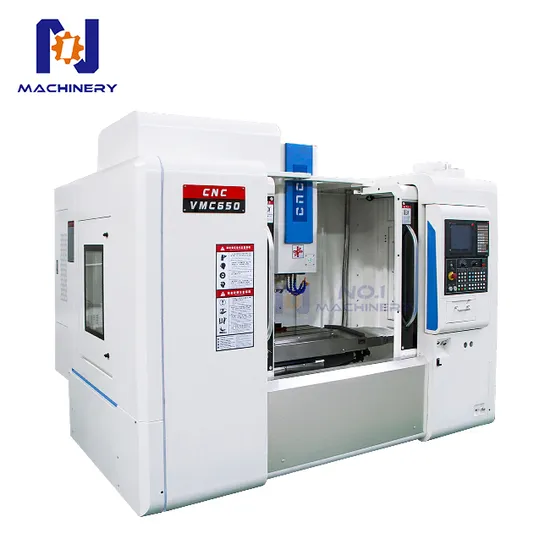

Fresadora Maquinado CNC Cheap Vmc Machine Vmc650 CNC Machining Center with Fanuc Control System

Product Description

Product Description

The VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Specification

MODEL	VMC650
X-Axis travel	800mm
Y-Axis travel	500mm
Z-Axis travel	500mm
Distance from Spindle nose to worktable surface	120-620mm
Distance from spindle centre to surface of column ram	492mm
T slot (width×num.)	18mm×3
Worktable size	400×900mm
Max.loading of worktable	400Kg
Power of spindle motor	5.5KW
Spindle speed	8000rpm
Spindle taper	BT40
Spindle bearing	P4
Rapid traverse speed of 3 axes	X /Y 24m/min
	Z 18m/min
Cutting feed rate	1-8000mm/min
Min.set unit & moving unit	0.001mm
Pitch of X/Y axes	6mm
Pitch of Z axis	6mm
Positioning accuracy (300mm)	±0.008
Repeatability accuracy (300mm)	±0.005
Changing way of tools	Spindle floating/manipulator
Tool magazine	24(turntable)
Tool spec. max.dia. (neighboring Tool)×weight×length	φ80mm×6Kg×300
Tool changing time	7
Machine weight	4000kg
Air pressure	0.6MPa
Power of cooling pump for cutting	530W
Overall size	2300×2000×2550mm

Details Display
1.TAIWAN TOOL MAGAZINE
Taiwan brand knife library optional 16/24 disc bonin tool tool change time only 2-3 seconds.

2.THE SPINDLE
Taiwan original spindle
The cutting force Is stronger
Passed dynamic balance ISO rating test

3.CASTING MACHINE
Yunnan HT300 resin sand casting,
tempering elimination internal stress,
high copper density, long time use no deformation.

4.CONTROL SYSTEM
SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements

5.GUIDE RAIL,LEAD SCREW
Guide rail and lead screw adopt taiwan brand The guide rail is quenched at intermediate frequency and precisely scraped ensure accuracy

6.HIGH QUALITY ELECTRICAL PARTS
Safety electrical components Quick plug as standard Make the machine performance better.
Recommended by seller

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.




FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
