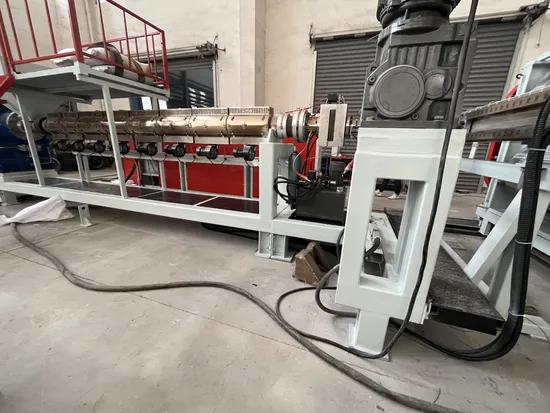

| | | Screw and barrel, origin Zhoushan,Zhejiang, China | |
| | | Screw, 38CrMoAl, nitridation and polishing | |
| | | Barrel: 38CrMoAL,nitridation treatment, water cooling in feeding parts | |
| | 1 set | Frequency converter | |
| | 1 set | Motor power 200kw | |
| | 1 set | ZLYJ375 Gear box,high torque, low noisy and hard gear face, with oil cooling system | |
| | 2 sets | Pressure sensors | |
| | | Each set in front and back of pump | |
| | | Each set in front and back of pump | |
| | 1 set | Screen changer | |
| | | Hydraulic cylinder control, quick change ans easy operation. | |
| | 1 set | Flat head die (T Die) 4300mm | |
| | | With rack cavity and compounding die orifice to make film flat and it is easy to be adjusted. It can be adjusted in a large range and produce products of various thickness.
Material:Stable alloy tool steel with the tempering treatment, less change in shape after heating, inner surface polished, hard chrome plating and abrading treatment.
| |
| | | Heating zone: Stainless steel heating tube; | |
| | | Width adjustable by using deckles | |
| | | | |
