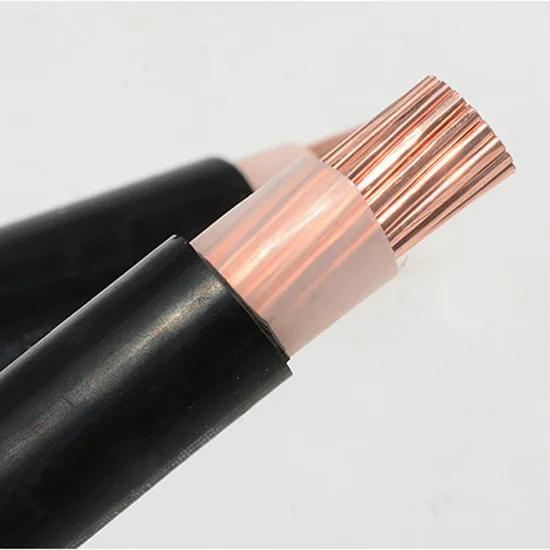

Yjv 0.6/1kv 1core 240mm2 XLPE Insulated/Jacket Copper Electrical Power Cable

Product Description

Product Description
PVC stands for "Polyvinylchloride". The application areas for this thermoplast in the plastics industry are diverse. There are various types of PVC used in the wire and cable industry.
Copper conductors are used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.
Furse PVC insulated stranded copper cable is available in a range of sizes to meet differing current ratings (see product information table).

BV-105 model not more than 105ºC, others not more than 75ºC, installation temperature not lower than 0ºC.
APPLICATION: This product is fit for ac rated voltage 450/750V.

Disclaimer:
* Parameters mentioned in the document are indicative and can vary subject to different standards
* Customizations are available on select products. Please indicate your interest by reaching out to the sales team
MULTI-CORE FLEXIBLE ROUND CABLE
(ODM/OEM)
Usage:
Fixed laying, can be used for indoor exposed laying or pipe threading and other occasions
Construction
Conductor:Pure copper/ Aluminum
Insulation:XLPE
Armor layer:Steel wire armor/steel strip armor
Jacket:PVC
Insulation colour:According to your needs
Delivery cycle:
Depending on your quantity
Reference data table

Normal area (mm²)	Conductor Construction (mm)	Outside Diameter (mm)	Sheath Thiness (mm)
1.5	7/0.52	6	1.5
2.5	7/0.67	6	1.5
4	7/0.84	7	1.5
6	7/1.04	7	1.5
10	7/1.35	8	1.5
16	7/1.7	9	1.5
25	7/2.14	10	1.5
35	7/2.52	12	1.5
50	19/1.78	13	1.5
70	19/2.14	14	1.5
95	19/2.52	16	1.5
120	37/2.03	18	1.5
150	37/2.25	21	2
185	37/2.52	23	2
240	61/2.25	25	2
3x1.5	3x7/0.52	10	1.5
3x2.5	3x7/0.67	11	1.5
3x4.0	3x7/0.84	12	1.5
3x6.0	3x7/1.04	13	1.5
3x10.0	3x7/1.35	15	1.5
3x16	3x7/1.7	17	2
3x25	3x7/2.14	21	2
3x35	3x7/2.52	23	2
3x50	3x19/1.78	27	2
3x70	3x19/2.14	30	2.5
3x95	3x19/2.52	34	2.5
3x120	3x37/2.03	38	2.5
3x150	3x37/2.25	42	2.5
3x185	3x37/2.52	45	2.5
3x240	3x61/2.25	51	3
4x4.0	4x7/0.84	13	1.5
4x6.0	4x7/1.04	14	1.5
4x10.0	4x7/1.35	16	1.5
4x16	4x7/1.7	19	2
4x25	4x7/2.14	22	2
4x35	4x7/2.52	25	2
4x50	4x19/1.78	28	2
4x70	4x19/2.14	32	2
4x95	4x19/2.52	37	2.5
4x120	4x37/2.03	42	2.5
4x150	4x37/2.25	46	3
4x185	4x37/2.52	51	3
4x240	4x61/2.25	57	3
3x4.0+1x2.5	3x7/0.84+7/0.67	13	1.5
3x6.0+1x4.0	3x7/1.04+7/0.84	14	1.5
3x10.0+1x6.0	3x7/1.35+7/1.04	16	1.5
3x16+1x10	3x7/1.7+7/1.35	23	2
3x25+1x16	3x7/2.14+7/1.7	26	2
3x35+1x16	3x7/2.52+7/1.7	28	2
3x50+1x25	3x19/1.78+7/2.14	31	2
3x70+1x35	3x19/2.14+7/2.52	36	2.5
3x95+1x50	3x19/2.52+19/1.78	40	2.5
3x120+1x70	3x37/2.03+19/2.14	44	2.5
3x150+1x70	3x37/2.25+19/2.14	49	3
3x185+1x95	3x37/2.52+19/2.52	52	3
3x240+1x120	3x61/2.25+37/2.03	78	3.5

---
