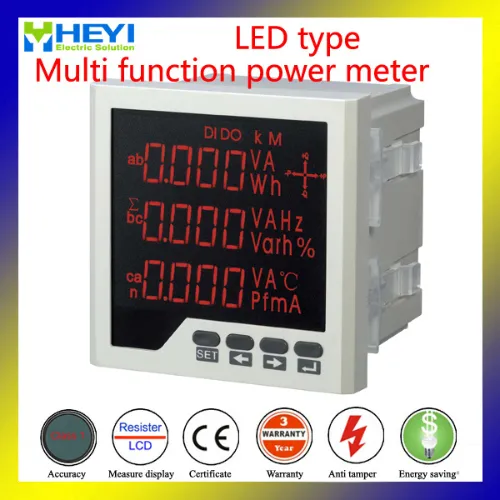

Rh-3FHD2y Monitor Meter with Power Multi Tariff Harmonic Measure Multifunctional Meter

Product Description

RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter
RH-3FHD2Y
RH: Company codeRH: Company code
3 stand for three phase
F stand for Multi tariff meter
H stand for harmonic
D stand for multi functional
2 is square shape ,size 120*120mm
Y stand for LCD display
RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter specification

accuracy of measurement:	1.voltage level 0.5, 2.current level 0.5, 3.active power 0.5, 4. reactive power level 0.5 5. Frequency ±0.02Hz, 6.active electric energy class 0.5s or class 0.2s, 7.reactive energy grade 1 or grade 2, power factor 0.5
Signal input	1.Connection mode of four phase three wire, three phase three line 2. Rated current of AC1A, AC5A 3. Over load:voltage of 1.2 times( Continued ), times / second ( instantaneous ) 4. Current of 1.2 times( Continued ), 10times / 5second ( instantaneous ) 5. Power <1VA/ phase current <0.4VA/phase 6.Impedance:voltage>300KΩ current <20mΩ 7. Frequency: 45-65Hz
Auxiliary power supply	1.Working range of AC/DC 80V~270V, AC220V, AC380V, AC100V 2. Power consumption < 4VA
Function module	1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol 2. baud rate: 1200~9600bps, the default 2400bps 3. Switch input support 2 stem node input 4.The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A 5. Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
Environment	1.Working temperature: -10°C~+55 °C 2. Storage temperature: -25°C~+70 °C 3. Relative humidity is less than 93%, no corrosive gas 4.Elevation≤ 2500m
Safety	1.Insulation resistance >100M Ω 2.AC withstand voltage AC 2KV
Electromagnetic compatibility	1. ESD level 4 2. Electrical fast transient burst level 4 3. Surge ( impact) level 4

RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter size

MULTI-FUNCTION MONITORING INSTRUMENT(9999 DISPLAY PROGRAMMABLE)
MODEL NO.	DISPLAY	FRAME SIZE(mm)	HOLE SIZE (mm)	REMARK
RH-D1	Digital single-row LED	160*80	152*76
RH-D2	Digital single-row LED	120*120	111*111
RH-D3	Digital single-row LED	96*96	92*92
RH-D4	Digital Single-row LED	120*60	114*56
RH-D5	Digital Single-row LED	96*48	92*45
RH-D6	Digital single-row LED	72*72	68*68
RH-D7	Digital single-row LED	80*80	76*76
RH-D8	Digital single-row LED	48*48	45*45
RH-D1Y	LCD	160*80	152*76
RH-D2Y	LCD	120*120	111*111
RH-D3Y	LCD	96*96	92*92
RH-D4Y	LCD	120*60	114*56
RH-D5Y	LCD	96*48	92*45
RH-D6Y	LCD	72*72	68*68
RH-D7Y	LCD	80*80	76*76
RH-3D2	SPECIALIZED LED	120*120	111*111
RH-3D2Y	LCD	120*120	111*111
RH-3FD2Y	LCD	120*120	111*111
RH-3HD2Y	LCD	120*120	111*111
RH-3LD2	SPECIALIZED LED	120*120	111*111
RH-3LD2Y	LCD	120*120	111*111
RH-3FHD2Y	LCD	120*120	111*111
RH-3D3	SPECIALIZED LED	96*96	92*92
RH-3D3Y	LCD	96*96	92*92
RH-3FD3Y	LCD	96*96	92*92
RH-3HD3Y	LCD	96*96	92*92
RH-3LD3	SPECIALIZED LED	96*96	92*92
RH-3LD3Y	LCD	96*96	92*92
RH-3FHD3Y	LCD	96*96	92*92
RH-3D7	SPECIALIZED LED	80*80	76*76
RH-3D7Y	LCD	80*80	76*76
RH-3D6	SPECIALIZED LED	72*72	68*68
RH-3D6Y	LCD	72*72	68*68
RH-3D8	SPECIALIZED LED	48*48	45*45
REMARK: If you need other function list ,please read this 1.AC/DC POWER SUPPLY(SWITCHING POWER SUPPLY 2.RS485COMMUNICATION: 3.ANALOG TRANSIMITTER OUTPUT: 4SWITCH INPUT: 5.SWITCH OUTPUT 6.MEANS UNCONVENTIONAL PRODUCTS OF OUR CORPORATION

RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter function
1. High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters
2. Forward and reverse active or reactive energy measurement
3. Division of electric energy metering, time-sharing power timing meter reading
4. Measurement of three-phase voltage, three phase current total harmonic distortion (THD), 2-31 odd harmonic component
5. Providing a nixie tube or the digital tube display, local data query
6. Menu button intuitive, simple operation
7. Current, voltage gain programmable setting
8. Provide multiple circuit leakage current monitoring
9. Provide multiple loop control nodes, can be used for the alarm, trip control
10. Support for fire control, remote cut off the fault circuit
11. Support for RS-485 communication, Modbus-RTU protocol
12. Support for switching input, output, analog quantity transmitting output
13. Convenient installation, wiring is simple, small engineering quantity
14. A wide range of AC/DC power supply: AC/DC 80-270V
15. To be completed by SCADA, PLC in a variety of communications software network
RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.

RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter Packing information
1. Inside foam package ,outside strong paper package
2. 40pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design

Why choose RH-3FHD2Y Monitor meter with power multi tariff harmonic measure multifunctional meter reactive power
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment

---
