Basic Info.
Application
School, Hospital, Lab
Product Name
Heating and Cooling Dry Bath
Temp. Setting Range
-10 Degree ~ 100 Degree
Temp. Control Range
Rt.-30 Degree ~100 Degree
Heating Time
<=10min(From 25 Degree to 100 Degree)
Cooling Time
<=10min(From 100 Degree to 25 Degree)
Voltage
AC110~220V/50-60Hz
Transport Package
Strong Packing
Production Capacity
8000 Units / Month
Product Description

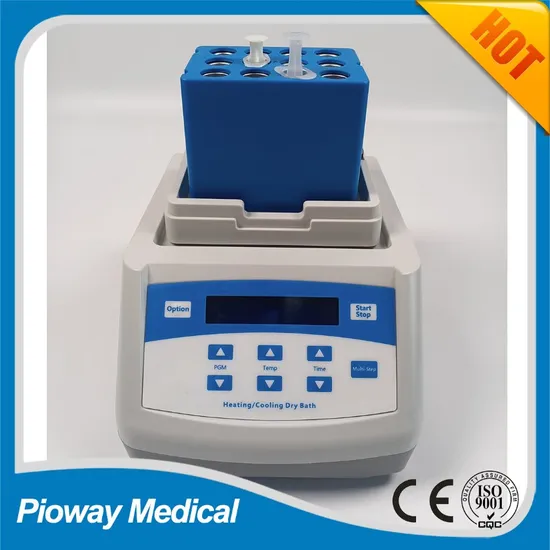

Lab Heating and Cooling Dry Bath Incubator with block for PRP (DC10)
Descriptions:
DC10 is microprocessor controlled Dry Bath Incubator. Instead of traditional water bath device, the heat-conducting medium is high purity alumium. The exact desired temperature is easily set using the arrow keys on the sloped control panel while values are shown on the large digital display. No checking of a thermometer and readjusting temperature is necessary. The user calibration feature allows for easy calibration to in house standards when required.
This product can be widely used in preservation and reaction of samples, DNA amplification, electrophoresis denaturation and serum solidification, etc.
Features:
1. Energy-efficient Peltier design.
2. Automatic fault detection and buzzer alarm function.
3. Electronic calibration. User can reset to any local standard.
4. Small, compact size uses very little bench space.
5. Easy replacement, cleaning and disinfecting of metal blocks.
6. Built-in over-temperature protection.
7. Internal power supply provided is UL, CSA and CE approved.
8. Customed modules are accepted.
9. Buzzer alarm when temperature control ends.
Specifications:
Project | Parameters |
Product model | DH300 | DC10 |
Temp setting range | 0ºC~100ºC | -10ºC~100ºC |
Temp control range | RT+5ºC~100ºC | RT- 30ºC~100ºC |
Time range | 1min ~ 99h59min/∞ |
Temp accuracy | ≤±0.3ºC |
Display accuracy | 0.1ºC |
Temp uniformity | ≤±0.3ºC |
Heating time | ≤12min(from 25ºC to 100ºC) | ≤12min(from 25ºC to 100ºC) |
Cooling time | -- -- | ≤10min(from 100ºC to 25ºC) |
Cooling time | -- -- | ≤25min(from RT to RT-30ºC) |
Storage at 4ºC | -- -- | Yes |
Multi points running | Yes(Max 5 points) |
Multi cycle | Yes(Max 99 times) |
Auto running | Yes |
Auto heating | Yes |
Auto resume to run | Yes |
Capacity | See optional block |
Power | 150W |
Power input | AC110 or AC220V / 50-60HZ | AC100~240V, 50/60Hz |
Fuse | 250V 3A Ф5×20 |
Size | 260x195x150mm |
Weight | 2.5Kg | 4.5Kg |
Optional Block:
Type | Description |
MD30 | 96x0.2ml PCR plate |
MD31 | 54x0.5ml centrifuge tube |
MD32 | 35x1.5ml centrifuge tube |
MD33 | 35x2.0ml centrifuge tube |
MD34 | 20x1.5ml+15x0.5ml |
MD35 | 96 x 0.2ml elisa plate |
MD36 | 24 x 5ml centrifuge tube |
MD37 | 15 x 10ml centrifuge tube |
MD38 | 12 x 15ml centrifuge tube |
MD39 | 6 x 50ml centrifuge tube(round-shape bottom) |
MD39-S | 6 x 50ml centrifuge tube(cone-shape bottom) |
You can also customize blocks for PRP
Detailed Images
Different Models
Packing & Shipping
>>
