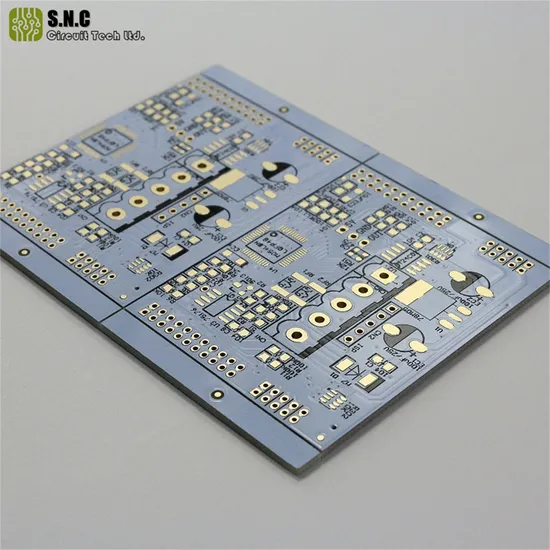

Car Light Circuit Board Aluminum Substrate Aluminium Core PCB OEM Motherboard Circuit-Board Professional Manufacturer Arduino Uno Printed Circuit Board PCB

Product Description

Detailed Photos
Our Service
1. PCB design ,PCB clone and copy ,ODM service.
2. Schematic design and Layout
3. Fast PCB&PCBA prototype and Mass Production
4. Electronic Components Sourcing Services
5. PCB Assembly Services:SMT,DIP&THT,BGA repair and reballing
6. ICT, Constant Temperature Burn-in and Function Test
7. Stencil,Cables and Enclosure building
8. Standard Packing and On time Delivery
Main Products
The above are the main products we recommend for you. We have many other products that are not shown here. If you have any needs, you can also click the link below to get more information.

Aluminum Substrate PCA	Ceramic Circuit Board	Copper substrate PCB
Double-sided PCB	FPC	HDI PCB
Heavy Copper PCB	Multilayer PCB	PCB Assembly

Product Parameters

Item	Production Capacity
Layer Counts	1-20 layers
Material	FR-4,Cu base,High TG FR-4,PTFE,Rogers, etc.
Board thickness	0.20mm-8.00mm
Maximum Size	600mmX1200mm
Board Outline Tolerance	+0.10mm
Thickness Tolerance(t≥0.8mm)	±8%
Thickness Tolerance(t<0.8mm)	±10%
Insulation Layer Thickness	0.075mm--5.00mm
Minimum Line	0.075mm
Minimum Space	0.075mm
Out Layer Copper Thickness	18um--350um
Inner Layer Copper Thickness	17um--175um
Drilling Hole(Mechanical)	0.15mm--6.35mm
Finish Hole(Mechanical)	0.10mm-6.30mm
Diameter Tolerance(Mechanical)	0.05mm
Registration(Mechanical)	0.075mm
Aspect Ratio	16:1
Solder Mask Type	LPI
SMT Mini.Solder Mask Width	0.075mm
Mini. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm
Impedance control Tolerance	±10%
Surface finish/treatment	HASL,ENIG,Chem,Tin,Flash Gold, OSP, Gold Finger

Company Profile

Process
Certifications
ISO9001:2015, IATF16949:2016, ISO14001:2015, UL
Our manufacturing portfolio can meet the requirements to support virtually all industries and PCB applications. Here are some of the industries you may find our products in:Digital products, voice control products, mother board, control products, security products, medical products, new energy car accessries.
In addition, we can also produce Flex and Rigid-Flex Circuits, multilayer circuit board, impedance board, high frequency board, aluminum substrate circuit board, rigid pcb according to customer needs. We also have an automated patch production line that can do pcb assembly, and we can also make pcb copy according to the samples provided by customers.Our products will face the mid-to-high-end market, most of which can be used in medical equipment, GPS, aircraft, satellite controllers, smart cars, transmitters, etc. Double-sided board
Packaging & Shipping
FAQ
Q1: How do you make sure the quality of the PCBs?
A1: Our PCBs are all 100% test including Flying Probe Test, E-test or AOI. In addition, we also have the IATF16949 certificate, which is a quality management system certification for the automotive industry. It has very high requirements for production capacity and quality. General PCB and PCBA suppliers cannot meet the application conditions.
Q2: What is the lead time?
A2: Sample needs 2-4 working days, mass production needs 7-10 working days. It depends on the files and quantity.
Q3: Can I get the best price?
A3: Yes. To help customers control cost is what we are always trying to do. Our engineers will provide the best design to save PCB material.
Q4: What files should we provide for a customized order?
A4: If only need PCBs, the Gerber files are needed; If need PCBA, both Gerber files and BOM are needed;If need PCB design,all requirement details are needed.
Q5:Can I get a free sample?
A5: Yes, Welcome to experience our service and quality.You need make the payment at first, and we will return the sample cost when your next bulk order.
WHY CHOOSE US
In today's globalized economy, it's not only important to build a great product but build it at a great price. SNC doesn't resell boards like most suppliers, we manufacture. Along with priding ourselves in running a lean operation, our partnerships empower us to provide customers with the most favorable pricing. Most re-sellers in the North American market enjoy a 50%+ markup on standard specs boards, and 100-200% markup on custom quotes. At SNC, we want you to give you peace of mind that you are always receiving the best value.
Along with our quality, service, and pricing, it's our humble opinion that you will be hard pressed to find a better overall value.
No matter which sector you're in, it's crucial that you have a reliable source for high-quality, affordable printed circuit boards designed to fit your criteria. We provide support throughout the PCB fabrication process, starting from design, to ensure that the delivered product is exactly to spec. We look forward to hearing from you and working with you on your next PCB project.
Any other questions please contact us directly.

---
