2024 New Warehouse Managment Android Handheld Data Collection PDA Terminal

Product Description

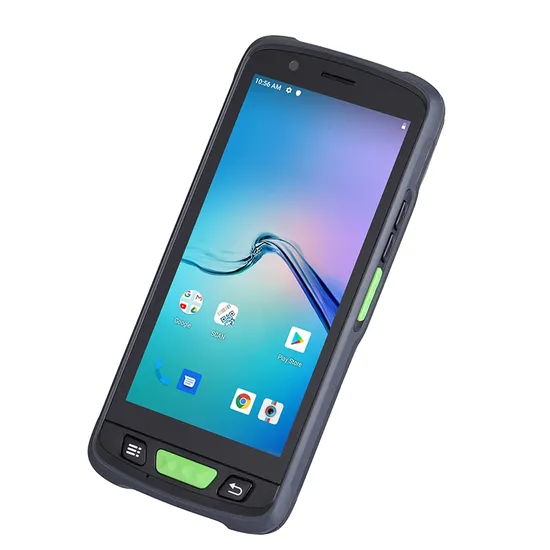

Product DescriptionV9000S Android portable UHF RFID PDA with pistol gripHosoton V9000S is an Android rugged PDA with gun grip RFID reader that delivers best-in-class UHF RFID capability. Designed with embedded Impinj E710 / R2000, it enables almost 20m of reading distance outdoors. The RFID PDA terminal also features optional infrared barcode scanning, Octa-Core processor and 9000mAh big battery to perfectly withstands intensive daily tasks , especially in asset management, retails, warehousing, clothing inventory, expressway toll, fleet management, etc- Android 11 OS with GMS
- 20m long distance with impinj RFID module
- 3+32 GB memory
- 5.5-inch Industrial capacitive screen
- Long battery working time >12 hours
- IP67 waterproof and dustproof
- 15MP auto focus camera with LED flash
- Excellent ergonomic Gun Grip Design
- Optional Embedded Professional infrared Barcode Scanner Product Parameters

Operation System
OS	Android 11 OS
CPU	2.0GHz, MTK Octa-core Processor
Memory	3 GB RAM / 32 GB Flash (4+64GB optional)
Languages support	English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size	5.5inch, TFT-LCD(720x1440) touch screen with backlight
Touch Panel	Gorilla glass III with 5 points Capacitive Touch Screen
Buttons / Keypad	4 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button
Card readers (optional)	Contactless Card , Support ISO / IEC 14443 A&B,Mifare, felica card conform to EMV / PBOC PAYPASS standard
Camera	Front 8 megapixels (optional), rear 13 megapixels, with flash and auto focus function
Indicator Type	LED, Speaker, Vibrator
Battery	Rechargeable li-ion polymer, 3.8V,9000mAh
Symbologies
1D Barcode	1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
2D Barcode	2D :PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc
HF RFID	Support HF/NFC Frequency 13.56Mhz Support: ISO 14443A&15693, NFC-IP1, NFC-IP2
UHF RFID	Frequency 865~868MHz / 920~925MHz /902~928MHz
	Protocol EPC C1 GEN2/ISO 18000-6C
	Antenna Gain Circular antenna(4dBi) ,linear polarization(1.8dBi)
	R/W Range 10-25m(tags and environment dependent)
Communication
Bluetooth®	Bluetooth®5.0
WLAN	Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN	GSM: 850,900,1800,1900 MHz WCDMA: 850/1900/2100MHz LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B20) TDD-LTE (B34/B38/B39/B40/B41)
GPS	GPS/BDS/Glonass, error range ± 5m
I/O Interfaces
USB	USB 2.0 (type-C) support USB OTG ,Ethernet/USB-Host via cradle
POGO PIN	PogoPin bottom: Charging via cradle
SIM Slot	Dual nano SIM Slot
Expansion Slot	Micro SD, up to 1TB
PSAM SECURITY (OPTIONAL)	Protocol :ISO 7816 Baudrate :9600, 19200, 38400,43000, 56000,57600, 115200 Slot :2 slots(maximum)
Audio	One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Enclosure
Dimensions ( W x H x D )	170*80*20mm (without the pistol grip and UHF shield)
Weight	585g (with battery)
Durability
Drop Specification	1.2m, 1.5m with boot case ,MIL-STD 810G
Sealing	IP67
Environmental
Operating temperature	-20°C to 50°C
Storage temperature	- 20°C to 70°C (without battery)
Charging temperature	0°C to 45°C
Relative Humidity	5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents	V9000S Terminal USB Cable (Type C) Adaptor (Europe) Lithium Polymer Battery
Optional Accessory	Charging docking Holster

Certifications
Company ProfileProfessional ODM industrial terminal designer and manufacturerShenzhen Hosoton Technology Co., Ltd. is a experienced player in R&D, manufacturing and marketing digital smart industrial equipment, such as Tablet PC, pipe endoscope camera, handheld PDA scanner and any other ODM industrial devices. Our products are widely applied to logistics, store management, municipal construction, finance etc.
FAQ1.How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by air.
2.Do you have any MOQ (minimum order)?We don't have any MOQ and 1pcs sample order will be supported .
3.What is the payment terms?T/T bank transfer is accepted ,and 100% balance payment before goods shippment
4.What is your OEM requirement?You can choose multiple OEM services includes boot animation, color box design, change model name, logo label design and so on , and some of these services can be done for 1 qty.
5.How many years have you been established?We focus on the rugged mobile device industry over 9 years.
6.How long is the warranty?We offer 1 year warranty to all of our products, and we also provide extended warranty based on your requirements .
7.How long is the delivery time?Normally the sample devices could be delivered within 5 working day , and the bulk order will depend on the quantity .If you need a drop- shipping service, we are experienced and can ship directly from China to your customers.
8.What are the accessories?The default accessories of our rugged devices are chargers and USB cables. There are multiple optional accessories are available, such as vehicle mount, docking station, wireless mat, hand strap, and so on. Welcome to visit our product pages for more details!
9.How to repair the devices if any issues?We will offer online technical support for product issues. If the issues is non-human factor, we will send components and parts to customers to repair.
10.How to install multiple functions into 1 device?You can ask us to install the 2D scanner, RFID, and high accuracy GPS module into the rugged device before shippment ,also we could provide ODM service for some specific function.
11.What kind of software support I can get?Hosoton provided lots of tailor-made rugged solutions to customers, and we can also provide SDK, software online upgrade , etc.
12.What kind of services can you provide?There is two services models for your option ,One is OEM service ,which is with customer's brand based on our off-the-shelf products ,the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.

---
