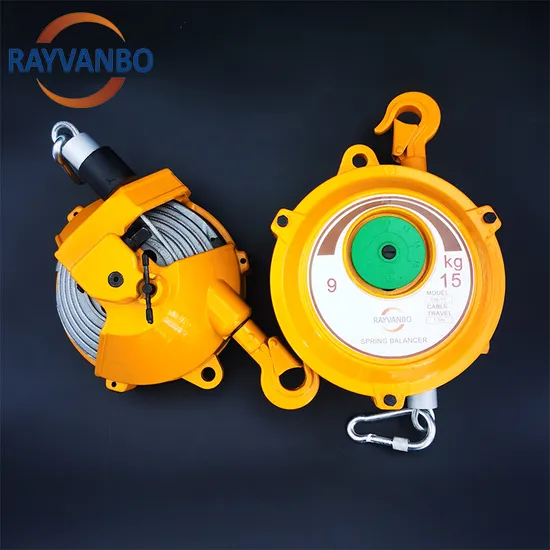

Assembly Tools Spring Balancer 3-5 Kg 80-100kg Weight Balance Multifunction 1kg to 200kg Adjustable Load

Product Description

Product Description EW series spring balancer is designed by our factory using advanced technology from abroad.An auxiliary tool that is manufactured and used in conjunction with an operating tool. This series of products use the help of The energy accumulated by the coil spring makes the suspended operating tool in a weightless state, greatly reducing The labor intensity of operators is reduced, and the labor production efficiency is improved.Therefore, the spring Balancer is an indispensable auxiliary work in factory production.
Spring balancers are suitable for assembly lines and various fixed positions where the workload is relatively concentrated.It is widely used for steam when operating tools are heavy and the duration of using tools is long. .
Cars, tractors, household appliances and machinery manufacturing and other fields, whether in the assembly line Or working at a fixed station, where manual tools and lifting equipment are used.also can be used as an auxiliary tool for lifting tools. The tools are heavy and need to be When working frequently up and down,the lifting force of the balancer can be used to reduce labor. The purpose of strength.
A tool spring balancer are a type of lifting equipment that will take the weight (neutralise the weight) of a tool or equipment which is attached to it and this is achieved by applying the correct tensioning a spring of the tool balancer.Because the tool spring balancer now takes the load effectively the item is now nearly weightless. If slightly more tension is applied the return spring of the tool balancer than the self weight of the tool the tool being balanced then the tool will retract slowly; the more tension that is applied to the spring the harder it will be for the operator to pull down the tool.
Detailed Photos
Packaging & Shipping
Product Parameters

Main technical parameters of the spring balancer unit
Model	Load(kg)		Working Stroke	Net Weight(kg)
	Min load	Max load	Common Type
EW-3.0	1.0	3.0	1.5	1.43
EW-5.0	3.0	5.0	1.5	1.52
EW-9.0	5.0	9.0	1.5	3.74
EW-15	9.0	15	1.5	3.9
EW-22	15	22	1.5	7.13
EW-30	22	30	1.5	7.6
EW-40	30	40	1.5	10
EW-50	40	50	1.5	10.2
EW-60	50	60	1.5	10.8
EW-70	60	70	1.5	11.2
EW-80	70	80	1.5	12
EW-100	80	100	1.5	22
EW-120	100	120	1.5	23

About Us
FAQ Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
