Pet Injection Molding Machine for Blood Collection Tube

US$49,000.00

1-9 sets

US$38,000.00

10+ sets

Basic Info.

Model NO.

U-130S

Type

Preform Injection

Structure

Horizontal

Plastic Type

PP, PE

Plasticizing Way

Reciprocating Type

Clamping Way

Hydraulic

Automation

Automatic

Computerized

Certification

ISO9001:2008

Weight (Kg)

9000 Kg

Clamping Stroke

600 mm

Mold Thickness(Min-Max)

195~610mm

Screw Speed (Rpm)

1 - 155 Rpm

Dimension(L*W*H)

630*170*200mm

Screw Speed

0-155 r.p.m

Space Between Tie Bars

580*580mm

Injection Weight (G)

1165 G

Screw Diameter (mm)

42 mm

Open Stroke(mm)

570 mm

Power (Kw)

32 Kw

Mold Height(mm)

160 - 400 mm

Clamping Force

270t

Plastic Processed

Pet

Ejector Force(kN)

11.1 kN

Transport Package

Machine Standard Export Packaging for Wooden Case.

Specification

670*170*200cm

Trademark

Tenghu

Origin

Shanghai, China

Production Capacity

1 Set/Sets Per Week

Product Description

Contact us

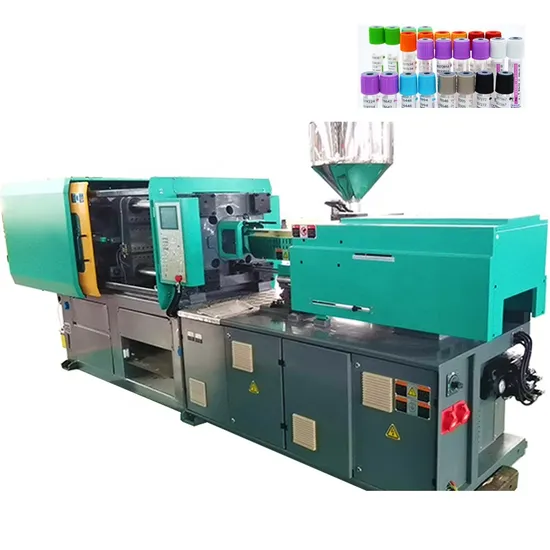

PET injection molding machine for blood collection tube
The use of advanced computer software designed to optimize the parameters of the most optimal design.
The application of automatic sampling system is used to test performance parameters of the new product.
It has smaller deformation of the platen,smoother movement, longer working life, lower energy consumption, easily operation. Product Description
Mold:

Part	Material	Cave	Molding cycle	Mold Base	Size
Tube	PET	32	9-12 Sec	4Cr13	820(L)X570(W)X554(Thickness)
Tube	PET	48	9.5-13 Sec	4Cr13	800(L)X485(W)X526(Thickness)

Company Information
Why choose us
Certifications
Package & Shipment
FAQ
Q: What are your special features?
For blood collection tube additives, our product category is the most. We not only have regular reagents, we also have Stabilizer, Anti-micro-coagulant, Moisturizer, Anti-adhesion agent, Container Interior Silicification Agent, These reagents are used in combination with regular reagents to achieve better effect. For blood collection tube additives production machine, the equipment is compatible and the applicable test tube specifications are: Ø13×/75/95/100,Ø16×/100mm.
