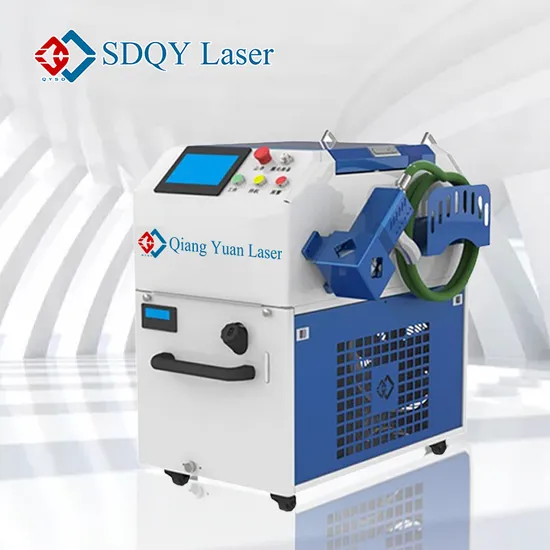

200W / 300W / 500W Factory Supply Pulse Laser Cleaning Machine

Product Description

Factory Supply Pulse Laser Cleaning Machine 200w / 300w / 500w / 1000w Maquina De Limpieza Laser
Product Description
Using MOPA pulsed fiber laser, a variety of pulse waveform selection, to meet the cleaning of different materials. The single pulse energy is large, the cleaning efficiency is high, the spot energy distribution is uniform, and the cleaning does not damage the substrate. The chassis structure is easy to integrate and has a large processing range.
It can non-destructively remove oil, corrosion, paint and other pollutants on the metal surface, which is green environmental protection pollution-free.
Product Parameters

Model	QYCL-FP200A	QYCL-FP300A	QYCL-FP500A	QYCL-FP1000A-15	QYCL-FP1000A-50
Average laser power (w)	200~220	300~320	500~520	1000	1000
Single pulse energy (mj)	13		50	15	50
Weight of hand-held head (kg)	1.5
Rated power (kw)	2.5	3	5	9
Power adjustment range (%)	10-100
Width of scanning (mm)	10-100
Focal length (mm)	100/160/254/330/420
Central wavelength (nm)	1060~1070
Cooling method	Water Cooling
Fiber length (m)	5m (Optional 10m)		5m	10m
Type of laser source	Pulsed fiber laser
Dimension of machine (mm)	841*490*772		1240*510*1040
Weight of machine (kg)	144		205
Package size (mm)	1200*560*950		1360*600*1405
Package weight (kg)	205		267
Power supply	220V		380V

Advantages
Gaussian Beam:
-Gaussian beam has a typical Gaussian power distribution, that is, the center brightness is high and the edge brightness is low.
-Gaussian beam can form a relatively small light spot on the surface of the object, so it can provide high beam focus and energy density, thereby improving the cleaning effect.
Top-hat / Flat-top:
-Top-hat beams have a more uniform power distribution, that is, the power is evenly distributed throughout the entire spot area. It can form a uniform light spot on the surface of the object, so it can cover a larger cleaning area and have a faster cleaning speed.
- Top-hat laser cleaning machine is suitable for some scenarios that require high cleaning speed.

Certifications
Related Products

Application
Our Advantages
Company Profile
SDQY Laser factory is an enterprise with strong research and development capabilities and advanced technology. It has a variety of high-performance products in the field of laser cleaning, including pulse laser cleaning machines and continuous laser cleaning machines.

---
