Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
System
Syntec/Mitsubishi/Fanuc/Siemens
Name
Mold Cutting CNC Vertical Machining Center
X/Y/Z Speed
36/36/36 M/Min
Tool Alignment
Auto Tool Checking
Repeat Precision
+-0.005mm
Max Working Speed
6m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Transport Package
Sea Worthy Plywood Case
Specification
2700*2900*2850
Origin
Dongguan City China Prc
Production Capacity
2000PCS/Year
Packaging & Delivery
Package Size
260.00cm * 250.00cm * 250.00cm
Package Gross Weight
5500.000kg
Product Description

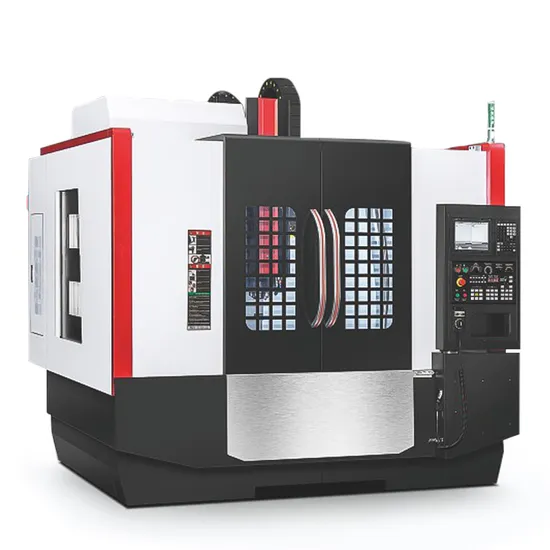

VMC-850 Precision 5 Axis CNC Machine Center Vertical Milling Machine Tools Machining Center
Product Description
The fixed-column vertical machining center machine tool adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, tapping, etc. Used in auto parts, valves, construction machinery, T equipment, optical equipment, medical equipment and aerospace industries
Product Paramenters
| Item | unit | VMC-650 | VMC-850 | VMC-1166 | VMC-1270 | VMC-1580 |
| Journey | | | | | | |
| Three-axis travel (X/Y/Z) | mm | 600/500/550 | 800/500/500 | 1100/630/600 | 1200/700/700 | 1500/800/800 |
| Distance from spindle centerline to column guide surface | mm | 480 | 556 | 690 | 768 | 800 |
| Distance from spindle nose to work table | mm | 120-570 | 120-620 | 150-750 | 110-870 | 120-920 |
| Workbench | | | | | | |
| Table size (length X width) | mm | 700X420 | 1000X500 | 1300X680 | 1300X700 | 1600X800 |
| Maximum load | kg | 600 | 800 | 1000 | 1200 | 1400 |
| Number of T-slots X Slot Width X Spacing | | 3X18X100 | 5X18X100 | 5X18X110 | 5X18X150 | 7/18/130 |
| Spindle | | | | | | |
| Spindle speed | rpm | 12000 | 12000 | 12000 | 12000 | 1000 |
| Spindle taper hole | | BT40 | BT40 | BT40 | BT40 | BT40 |
| Spindle motor power | kw | 5.5/7.5 | 7.5/11 | 11/15 | 11/15 | 11/15 |
| Speed | | | | | | |
| Rapid traverse speed (X/Y/Z axis) | m/min | 48/48/48 | 36/36/36 | 30/30/30 | 30/30/30 | 30/36/48 |
| Cutting feed rate | m/min | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 |
| Tool magazine | | | | | | |
| Number of tools | T | 24 | 24 | 24 | 24 | 24 |
| Tool diameter/length/weight | | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg |
| The maximum diameter of the tool (full knife / adjacent empty knife) | mm | 75/150 | 75/150 | 75/150 | 75/150 | 75/150 |
| Machine tool accuracy | | | | | | |
| Positioning accuracy (X/Y/Z) | mm | 0.008 | 0.008 | 0.01 | 0.01 | 0.012 |
| Repeated positioning accuracy (X/Y/Z) | mm | 0.005 | 0.005 | 0.006 | 0.006 | 0.008 |
| Other | | | | | | |
| Air source/air pressure | | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar |
| Total capacity of machine tools | KVA | 20 | 20 | 25 | 35 | 20 |
| Tank volume | L | 400 | 400 | 420 | 260 | 250 |
| Machine tool dimensions (X/Y/Z) | mm | 2400X2450X2500 | 2600X2500X2500 | 3100/2550/2550 | 3400X2850X2800 | 4500X3500X3100 |
| Machine Weight (Approx.) | kg | 4500 | 5800 | 9000 | 9800 | 11000 |
>>
