High Speed Low Price Fully Automatic Thickened Paper Plate Dish Making Machine

Product Description

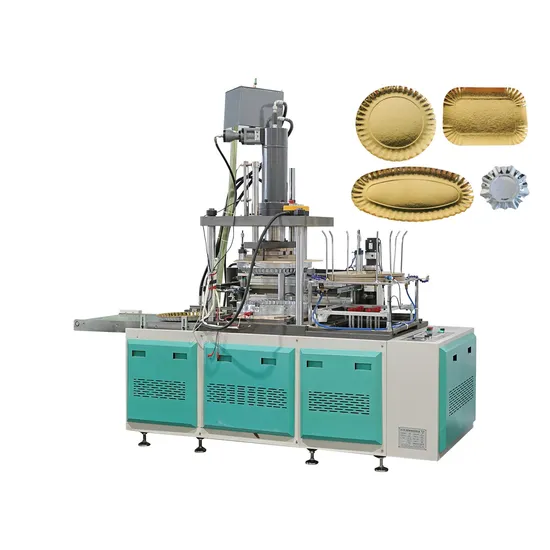

Product Description The BR-TP001 Thickening Paper Tray Forming machine is developed and designed based on market demand, mainly produces convenional paper trays, irregular paper trays, deep paper bowls, enlarged and thickened paper trays. BR-TP001 has reorganized the principle of combining hydraulic and mechanical control, with paper feeding servo motor control, precise posifioning, and the robotic arm collecting and stacking finished products. Compared with traditional fully automatic paper tray machines, BR-TP001 has a higher output capacity, is more convenient in operation and maintenance, more stable. BR-TP001 is widely used in the production raw paper or aluminum foil. Different SKUs can be produced by mold change.
Detailed Photos Product Parameters

Model	BR-TP001
Raw Paper Size	φ100-420mm Square L 450mm*W 400mm
Paper grams	100-3500 gsm
Paper materials	Base Paper,whiteboard paper,Ivory cardboard,aluminum foil paper or others
Capacity	10-20 pcs/m
Power requirements	380V 50Hz
Total power	8kv
Weight	1600kg
Specifications	2600mm*1100mm*2100mm
Air supply recuirement	Working Pressure 0.4Mp, working air volume 0.3m³/min
Other notes	Customize
Oil cylinder Pressure	20-30T

Company Profile
FAQ 1.Q:What is the machine warranty? A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 2-3 months after get the down payment.
4.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
5.Q:Does the packing strong?
A:Yes, of course! Packing is with wood pallet or wooden cases, suitable for long-distance road and vessel transportation and various types of weather conditions.
6.Q:How do I order spare parts?
A: Have the machine model and serial number (nameplate). In your parts manual, have the page number, item number, and parts description. Belts, for example, come in many different widths, lengths, and thickness. Having all the above information ensures the correct item is ordered.
7.Q:Are you manufacturer?
A:Yes, we are manufacturer. Welcome to visit us and look inside the machine details, to trace machines original manufacturing processes, and to know the people behind the machines. We can also arrange to arrange a video call to have a factory tour.
8.Q:Do you have stock product to sell?
A:Actually our machine need 2-3 months to manufacture, and there are many orders from China and abroad, so we need produce the machiney to your customized requirements, and your order will be highly attention to manufacture.
9.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine .
10.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery.

---
