Creator 4K HDMI 36X36 Matrix HDMI 2.0 Video Wall Controller

Product Description

Product Overview

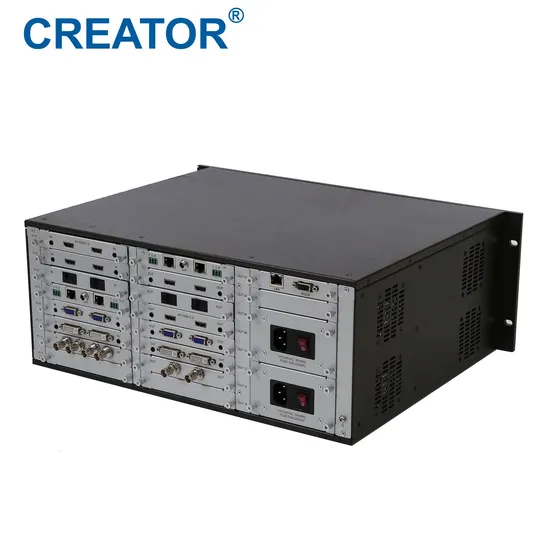

MID-MAX series hybrid modular matrix switcher is a 4k@60Hz seamless switching processor with video wall function. It supports various video formats, and up to 8~140 inputs, 8~140 outputs, 2k@60Hz video wall processing.
It adapts the daughter cards structure, with flexible configuration and convenient installation. The input/output port support: HDbaseT, SDI, HDMI, VGA, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS).With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc.
MID-MAX series matrix switcher provides one-stop solution for mulitiple types of visual signals and control signals switching and processing in various industries, especially for Broadcasting and Television Projects, Multimedia Meeting Rooms, Big Display Projects, TV Education, Smart Traffic Management Centers, and Command Center, etc.
Features
♦ Input/output maximum resolution 3840x2160@60Hz;
♦ Support HDMI 2.0, HDCP 2.2, YUV 4:4:4, audio 7.1 CH;
♦ Support video wall processing function (2k@60Hz);
♦ HDBaseT cards support POC;
♦ Full digital switching: real seamless switching for all types of output cards.
♦ Redundant power supply(CR-MID MAX0808/1616 is with single module, and double modules optional. CR-MID MAX3636 and above are with double power modules);
♦ Support Seamless switching;
♦ Support up to 8~140 inputs and 8~140 outputs;
♦ Input/Output port: HDbaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS);
♦ Control interface: RS232,Web-based Ethernet/LAN;
♦ PC software to facilitate remote control, real-time display the input and output status;
♦ Scalar inside, output resolution control available;
♦ Character overlay function: Font / color / size control available.
Specifications

Model No.	CR-MID MAX0808/1616/3636/8080/140140
Interface
Input Card Quantity / Input Channels	4/8 8/16 18/36 40/80 70/140 (Single Card Two Channels)
Output Card Quantity / Output Channels	4/8 8/16 18/36 40/80 70/140 (Single Card Two Channels)
Input Signal Type	HDMI,DVI,HD,VGA,SDI,4k HDMI,4k HD
Output Signal Type	HDMI,DVI,HD,VGA,SDI,4k HDMI,4k HD
Serial Port Control
Serial Port Control Interface	RS-232, 9-pin female D interface and 9-pin male D interface
Baud Rate and Protocol	Baud Rate: 9600; Date bits: 8; Stop bits: 1; No parity
Serial Port Structure	9-pin D female interface: 2=TX, 3=RX, 5=GND
Ethernet Control
Ethernet Control Interface	RJ-45 bus interface
Ethernet Control Protocol	TCP/IP
Ethernet IP Type	Static IP; Automatic IP
Front Panel
Control Button	Physical control buttons
Display	LCD display ( show status)
General
Power Supply	100VAC-240VAC, 50/60Hz
Storage & Working Temperature	-4 - 140ºF/-20 - 60 ºC; 32-104ºF/0-40ºC
Storage & Working Humidity	20-90% RH (no condensation)
Chassis Size	2U 4U 8U 16U 29U
Gross Weight	9kg 13kg 23kg 44kg 88kg
No-load Power Consumption	100W 200W 350W*2 350W*4 500W*4
Mean Time Between Failures	30,000 hours
Warranty	1 year free warranty

MID-MAX Series 2k Seamless Switching Cards
Input/Output
Signal Type	Format
HDMI	HDMI 1.3A, up to 1080P60Hz
HDBaseT	Up to 1080P60Hz
DVI	Up to 1080P60Hz
VGA	Up to 1080P60Hz
SDI	480i60, 576i50, 1080i60, 1080i50, 720p60, 720p50, 1080p24/25/30/50/60
MID-MAX Series 4k Seamless Switching Cards
Input
Signal	Format
HDMI	Up to HDMI 2.0 4k 4:4:4@60Hz
HDBaseT	4k@60Hz, works with HDBaseT seamless transmitter box.
Output
Signal	Format
HDMI	Up to HDMI 2.0 4k 4:4:4@60Hz
HDBaseT	4k@60Hz, works with HDBaseT seamless receiver box.

System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
