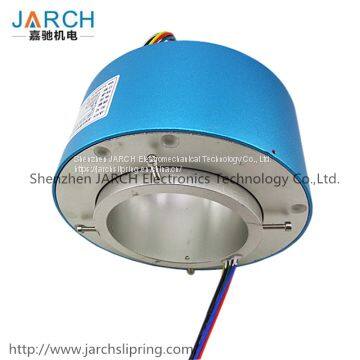

Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Hollow Slip Ring

Product Details

Product Description

Product Description
Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Hollow Slip Ring
Product Description
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring
JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Rin
The TH060 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 60mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 2 ~ 72 ring.
Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring
Installation Instructions:Shaft /Flange Mounted
Benefits OF Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
1.What technical data should be provided for our customized slip ring model.
A:
If you want to costomize the special slip ring model, you need provide details as below:
a.operatring speed(RPM)
b.the type of installation
c.outline size
d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings
f.the signal type and related
parameters(very important)
g.operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
If you have any questions, pls contact us without any hesitation.
