New Patent Gentle Mixing Optional Spiral Belt Shaft Blender Mixer

Product Description

Product Description

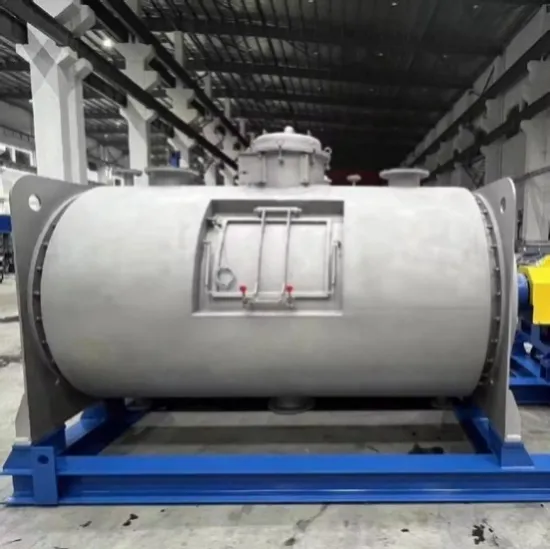

New Patent Gentle Mixing Optional Spiral Belt Shaft Blender Mixer· Equipment Introduction
It is suitable for mixing different powders with each other, mixing batches of the same material, mixing powders with a small amount of liquid, mixing powders with liquid to slurry, thickening or diluting slurry, mixing granules with powders, mixing granules with granules, crushing and mixing agglomerates, cooling or heating up mixing, etc. can meet the requirements. The screw belt mixer is divided into a horizontal screw belt mixer and a conical vertical screw belt mixer according to the installation method. The horizontal screw belt mixer can be divided into horizontal U-shaped mixers and horizontal round mixers depending on the barrel structure of the equipment. It is widely used in the lithium, chemical, ceramic, fire fighting, hard alloy, friction material, refractory material, dry mortar and mining industries.
· Principle of Operation
The horizontal screw belt mixer is a one-piece internal and external double-layer positive and negative rotating spiral belt shaft with positive and negative rotating spirals installed on the same horizontal axis. Driven by the power system of the screw belt machine, it rotates along the axis of the cylinder, forming a low-powered and efficient mixing environment to drive the material in the cylinder to make axial and radial movements. The axial movement of the material is driven by the outer layer of the spiral strip from both sides to the central collection of materials, the inner layer of the spiral strip from the central to both sides of the material dispersion, which makes the material in the flow of continuous convection cycle, shear percolation mix. After speeding up the mixing speed, the material will be mixed quickly and evenly in a short time to improve the mixing uniformity.
Design Highlights:

1	Easy cleaning, to meet the timely, convenient and fast cleaning of the interior of the equipment per batch and per shift, leaving no dead space.
2	High mixing uniformity. It can make 1:10,000 times the ratio of the material evenly mixed, especially for the specific gravity characteristics of the material is more obvious its advantages.
3	Fast mixing speed and high efficiency.
4	Quick and easy to dispense.
5	Large loading capacity. The equipment can usually be loaded up to 60%.
6	Low residuals.
7	It caters for vacuum loading and dust free discharge to avoid dust flying throughout the loading and mixing discharge process.
8	Gentle mixing process. It does not produce overheating of heat sensitive materials. It basically does not destroy the original state of the material in order to keep the material particles intact. It is well adapted to the mixing of coarse, fine, fibrous or flaky materials.
9	No pollution of materials. The stirring mechanism is integral, which is safe and reliable. All the angular welding seams are round and smooth, and the transition is easy to clean. Lubrication parts are all outside the barrel. No oil dripping and no abrasive material penetrating into the material. It can be sealed operation, in order to isolate the air dust into the material.
10	Low requirements for the plant. The machine is horizontal. The various forms of drive and discharge positions can be selected at will and are not constrained by the height of the plant, floor space, etc.
11	The equipment runs smoothly and reliably. The wearing parts have a long service life, which are easy to operate.
12	Under the feasibility factor, the mixing effect of the horizontal spiral ribbon mixer is not affected by the size and density of the particles. It also has a good mixing effect on viscous materials.
13	Spiral ribbon mixer bottom discharge mode: for small batch test mixer, powder materials are mostly used in the form of pneumatic large door structure, with the advantages of fast discharge, no residue.

Model	Full volume(L)	Volume coefficient	Power	Power	Speed(r/min)
WLDO-100	100	0.4-0.6	2.2-4	90	0-90
WLDO-300	300		4-5.5	270	0-65
WLDO-500	500		5.5-7.5	450	0-55
WLDO-1000	1000		7.5-22	900	0-50
WLDO-1500	1500		11-22	1350	0-40
WLDO-2000	2000		15-30	1800	0-35
WLDO-3000	3000		18.5-30	2700	0-30
WLDO-4000	4000		22-37	3600
WLDO-5000	5000		30-45	4500
WLDO-6000	6000		37-45	5400
WLDO-8000	8000		45-55	7200	0-25
WLDO-10000	10000		55-75	9000	0-20

· Customer Photos
· Company Information
The company specializes in a wide range of products. It mainly produces plough dryer, vibrating dryer, pot drying machine, spiral belt cooling/mixer, synthesis reaction kettle, washing/coating kettle, vibrating conveyor, silo, storage tank type and related auxiliary equipment. Our products are widely used in the dosing, washing, drying, cooling and transport system of high nickel ternary wet cladding line.

---
