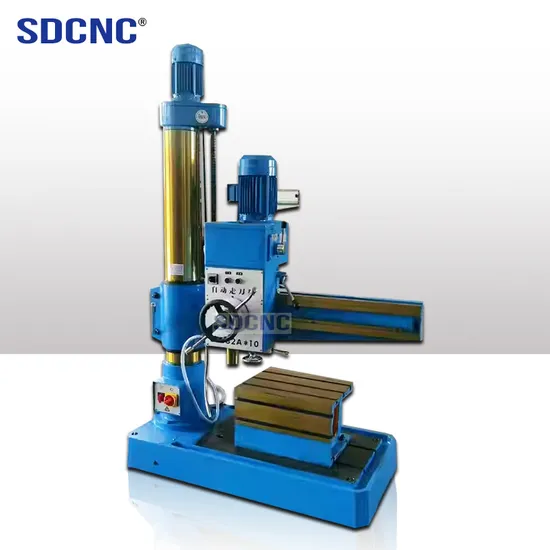

Z3032 High Quality Radial Drill Machine Drilling Machine for Metal Drilling

Product Description

SPECIFICATIONS

Z3032 Low Price Radial Drilling Machine for Sale
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing

Datas	Z3032×10
Max. Drilling diameter mm	Steel Φ32 iron Φ32
tensile strength Mpa	500-600
Column diameter mm	200
Distance between spindle centerline and column mm	200-910
Horizontal moving distance of spindle box mm	710
Distance from Spindle nose to base surface mm	330-1060
Rocker arm lift distance mm	730
Spindle travel mm	120
Spindle taper	Morse 4
Spindle speeds r/min	108 162 262 398 665 1000
Spindle feeder mm/r	0.10 0.16 0.25
maximum feed resistance of Spindle allows N	5300
Rocker arm lifting speed m/min	1.21
Swing angle of rocker arm (°)	+ 180
Spindle motor power KW	1.5/2.2
Liftting motor KW	0.55
Coolant power KW	0.04
Net weight kg	1080
Machine size mm	1400×660×2060

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.

---
