Sigma/Z-Type Paddle Kneader Various Types of Stainless Steel Kneader Hot Melt Adhesive Manufacturing Equipment

Product Description

Product DescriptionMachine structure:
Including kneading/mixing system, machine base, hydraulic system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional)
---- Discharge: Tilting discharging
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
---- Heating: electric heating, hot water heating, hot oil heating, steam heating
Cooling: Z blades water cooling, mixing chamber with jacket for cooling purpose.
---- Vacuum system: water-ring vacuum pump and buffer tank.

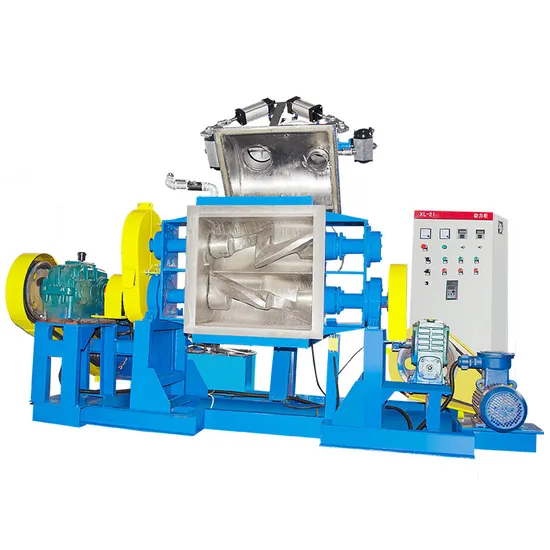

Detailed PhotosBrief Introduction:Double Sigma blade Mixer, it is a multi-functional equipment combining kneading, mixing,heating, vulcanizing and polymerizing. Specially suitable to process High Viscosity and Elastoplastic materials.
Working Principle:It's working principle is the two "Σ" shape blade: One blade with higher speed usually 33 RPM, the other is slower about 25 RPM, using speed difference to generate a strong shearing force, making the mixture quickly be sheared and evenly mixed.
Product Parameters

Volume(L)		5	10		100	300	500	1000	1500	2000	3000	4000	5000
Rotation Speed(rpm)		33 23	33 23		35 22	37 21	37 21	35 25	30 16	30 16	38 27	38 27	38 27
Main Motor Power(kw)		0.75	1.1		3-7.5	11-30	15-37	22-90	22-90	30-110	30-110	45-110	55-132
Heating Methods	Steam: Pressure (MPa)	0.3
	Electric: Power (kw)	1	1		4	9	16.2	27	32.4	40	72	72	96
Vacuum(MPa)		-0.094 (Vacuum Kneader)
Pressure(MPa)		0.45 (Pressure Kneader)					0.35 (Pressure Kneader)				0.3(Pressure Kneader)
Weight(kg)		300		400	1250	1600	3000	4500	5800	6500	~11000	~13000	~21000

Certifications
Packaging & Shipping
Company Profile
After Sales ServiceQ: What about your warranty?A: Firstly, before delivery, our internal QC will do a general inspection, showing the condition of goods, through test running or trial operation .Secondly, our guarantee period is 12 months, starting from the arrival of goods: Under normal using condition, if the equipment is faulty, for example the damage of motor, reducer or inverter, we will provide replacement on our account. If the damage is caused by operating error, we will provide customers with technical guidance for replacement and repairing free of charge.Q: How about your after-sales service? If there problem during using process, what should i do?A: Whether within or beyond warranty, we will firstly assist you to figure out essenceof the problem, through videoconferencing. If it's in warranty, it's undisputed that we will be responsible, no matter provide new replacement for free, or refund you the repair cost. If it's exceed warranty, we will provide you the replacement with it's cost price, searching the most favorable transport mode, so as to solve the problem and maximumly save you the cost in the meantime.Besides, we will provide life-time maintenance advice and technical guidance.
FAQQ: What's your company strength? Because I saw most products their appearance are very similar.
A: Yes, you are right, similarity in appearance of products is indeed a question.
For this matter, we mainly do two aspects: First of all, insuring product quality; On the other hand, increase the professionalism of sales rep and improve their communication ability, to provide customers more extra value besides product.
Q: How can I trust you? After all, this is our first cooperation, but I have to give you the money before you ship the goods.
A: Yes, it's really not easy to choose a reliable supplier among many suppliers.Because you may have to consider many factors, for quality, safety, price, delivery, after sales service, and so on. But please don't worry, our company with more than 20 years experience in this field, we have thought about all considerations for you.The only thing you need to consider is how to continue to develop and grow in your market and leave the rest to us.
Q: Is the customization available?
A: Yes, equipment can be customized based on clients' request.
5l-5000l sigma kneader , stainless steel, hydraulic tilting the chamber, screw extruder, ex-proof,
wear resistant liner, heavy-duty, vacuum system, cooling, heating system, screw extruder, control cabinet, cutter, filter.
1. Short brief:
Each set of sigma kneader has two pieces of sigma blades inside the w type mixing chamber. It is widely used to knead, mix, crush, disperse and re-polymerize high viscosity paste or elastoplastic materials, which can not be processed by the general powder mixers and liquid blenders.
It is the ideal equipment for all kinds of chemical products and has the advantages of stirring evenly, kneading efficiently and no dead corner.
2. Uses:
Sigma kneader is suitable to make carbon fiber, cmc, bmc, dmc, construction adhesives, silicone sealant, silicone rubber, bubble gum, chewing gum, cellulose, and is also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics and other industries.
3. Performances:
1) PLC control and record the temperature, time, viscosity and other relevant data in real time during production.
2) contacting parts are made of stainless steel, to ensure product's quality.
3) the sigma kneader can be used for the high-viscosity paste or plastic solid with poor mobility around 50000pa. S, and the jacket can be heated or cooled by the heat transfer oil or water. According to the special needs, the plant can be designed to operate in a vacuum.
4. Notes:
(1) our company can design the equipment according to user's specific requirements.
(2) for the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
(3) if you are not certain of which type to choose, please call us and our profession sales engineers will recommend for you.

---
