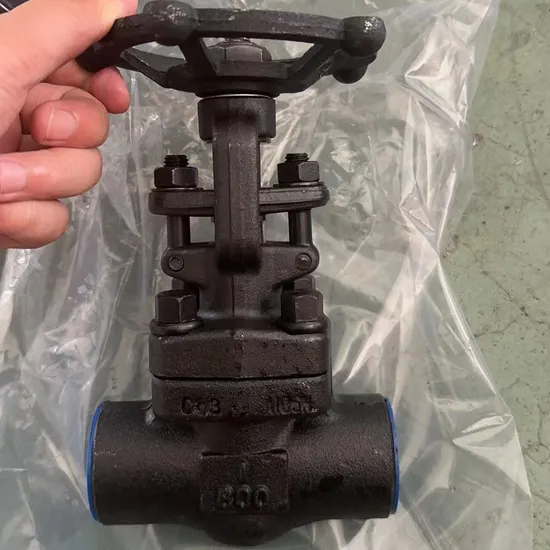

API602 Forged Steel A105 DN25 800lb1500lb 2500lb Sw Bw Threaded Gate Valve

Product Description

Product Information Bonny Valve has very extended experience in manufacturing of Forged Gate Valves

Size: ½" up to 2"(DN 15 up to DN 50)
Pressure Rating: ASME 150# to 2500#
Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
End Connection: NPT, SW, BW, Flanged RF, FF, RTJ, Ends
Operator: Hand wheel Operated

Type	Forged steel Gate Valve
Authentication	ISO9001,CE
Power	Manual
Flow medium	Water, Oil, Air, And Some Corrosive liquid
Interface size	½" up to 2"(DN 15 up to DN 50)
Material	A105/LF2/F11/F304/F316/F304L/F316L
Pressure	AS PER ANSI 150#, 300#, 600#, 900#, 1500#, 2500#
End Connection	Flanged RF, FF, RTJ, BW, NPT, SW Ends
Specifiction	Design - API 602 / BS 5352 / ASME B16.34 End Flange - ASME B16.5 BW End - ASME B16.25 SW End - ASME B16.11 Screwed Ends - ASME B1.20.1 Test - API598
Features	Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet Plug Type Disc/Conic Disc Full port or Conventional Port Outside Screw and Yoke (OS&Y), Rising Stem Extended Bonnet For Cryogenic Services

Company Introduction
Certificates
Packing&Delivery

Packing Details:	Inner Package:bubble bags + plastic cover Outer Package:plywoodcase
Delivery Details:	Generally it is 5-10 days if the goods are in stock. Or 30~45 days after receiving the payment.

FAQ Q: Are you trading company or manufacturer ?
A: We are manufacturer,Located in Wenzhou,China.
Q: How long is your delivery time?
A: Generally it is 3-5 days if having stocks. or 30-45 days according to your quantity.
Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is your Core Products?
A2: Our Main Producs are all kinds of valves,like gate valve,globe valve,check valve,ball valve,butterfly valve for for Oil,Gas&Petrochemical industries,marine,energy,water and waste among others.
Q:What's Warranty of your product?
A3: At least One year Warranty for all products

---
