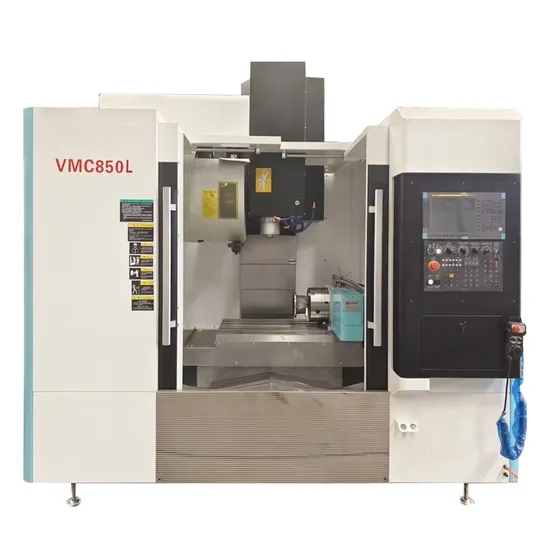

CNC Machining Center Fanuc Vmc Vertical 4 Axis CNC Milling Machine for Metal Vmc850 Fresadora CNC Metal

US$28,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

VMC850

Type

Tool Milling Machine

Object

Tool

Structure

Bed type

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Product Name

Vertical Machining Center

Machine Type

CNC Milling Machine

CNC or Not

CNC Automatic

Spindles Clean The Air

Centralized Automatic Feed Lubrication System

Keyword

Vertical Machine Center, CNC Milling Machine

10.4 "Display

Tricolor Warning Light

Servo Transformer

Separate Handwheel

Foundation Gasket and Adjusting Bolt

RS232 Interface

Random Technical Document

Three Ball Type Linear Guide Rail

CNC Milling Machine

CNC Vertical Machining Center Vmc Machine

Production Capacity

30 Set/Month

Product Description

Cnc Machining Center Fanuc VMC Vertical 4 Axis Cnc Milling Machine For Metal VMC850 Fresadora Cnc Metal # Robust construction for efficient machining.
# HIWIN linear rail guide system for rapid feeds upto 8000mm/min.
# NSK high-precision bearing preloaded for ballscrews on all 3 axis.
# Armless(Umbrella)Type ATC(16-20 tools) Or Mechanical hand 24-station tool magazine as Optional.
#The rotary table(4thaxis,4+5th axis)as optional.
# Integrated coolant system.
# Chip conveyor and purge system for optimum chipremoval.
# Easy accessibility of work table foreasy setup and tooling.
# Enclosed work space ensures safe and contamination-free work.
# Different Operating system as optional: Siemens, Fanuc, Mitsubishi, GSK, Syntec. KN
Technical parameter

Model	VMC650B	VMC850B	VMC1055B	VMC1370B	VMC1580B	VMC1890B
Travel(XAxis)(mm)	650	850	1000	1300	1500	1800
Travel(YAxis)(mm)	500	550	550	700	800	900
Travel (ZAxis)(mm)	500	550	560	610	700	680(800)
Distance: working table to spindle nose(mm)	150-650	120-740	150-710	140-750	140-840	160-840
Distance:spindle to Vertical Guideway(mm)	555	575	610	765	860	1060
Working table size(mm)	900X420	1000X550	1200X550	1400X710	1700X800	2000X900
Max.load on table(kg)	500	600	800	1000	1500	1600
T shape groove	3-18X100	5-18X100	5-18X100	5-22X120	5-22X135	5-22X160
Taper hole of spindle	BT40- φ120	BT40- φ150	BT40- φ150	BT40- φ150 /BT50- φ155	BT50-- φ155	BT50-- φ155
Spindle speed (r/min)	8000	8000	8000	8000	6000	6000
Spindle power (kw)	5.5/7.5	7.5/11	11/15	11/15	15/18.5	15/18.5
Power(XYZ)(kw)	1.5	2	3	3.5	4.5	4.5
Rapid moving speed X/Y/Z(m/min)	24/24/18	24/24/18	24/24/18	24/24/18	24/24/18	24/24/18
Feeding speed(mm/min)	20-5000	20-5000	20-5000	20-5000	20-5000	20-5000
XY ZPositioning accuracy (mm)	0.012	0.012	0.012	0.012	0.012	0.012
XY ZRepositioning accuracy (mm)	0.006	0.006	0.006	0.006	0.006	0.006
Dimension(mm)	2400X2050 X2030	2700X2150 X2600	3200X2500 X3000	3700X2600 X2515	4310X2810 X2780	4800X3460 X4000
Weight(Kg)	4000	5000	6500	8500	12000	17000
