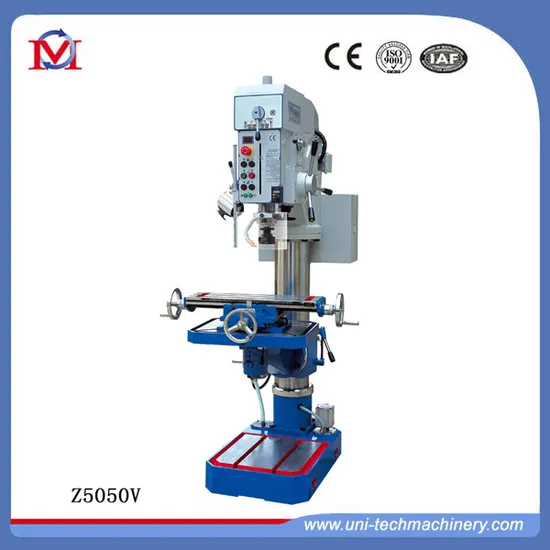

Frequency Speed Vertical Drilling Machine with Stepless Speed Z5050V

Product Description

Frequency Speed Vertical Drilling Machine with stepless speed Z5050V
Main features:
1.3-phase with two- voltage for 220V~575V collocation
2.All main parts are made with quality cast iron
3.Single-speed motor, Germany original Lenze transducer spindle stepless timing for ZWB series.
4.Strength spindle, large diameter column,Trochoid lubrication pump
5.Worktable could be rotated and could be inclined ±45°
6.Motor driven lifting of worktable.
7.Digital readout for the display of speed and cutting depth
8.Micro feed is available.
9.Coolant System and fender device
10.Supply accessories Φ6~Φ16mm collet, handle of milling cutter,cross worktable,handle of collet, nut for t-slot, inner haxagon bolt
11.Importable electrical components with CE,CSA and UL standard
12.The model with A is electromagnetism clutch transmission feed, with B is mechanical feed.

Standrd accessories:
1.Key type drill chuck
2.Connecting bar for drill chuck
3.Shaft sleeve for taper shank tool
4.Wedge for taper shank tool
5.double open end spanner

Optional accessories:
1.Cross worktable
2.125mm precision vice
3.Germany original Lenze transducer
4.Collect and handle of milling cutter
5.Rotation worktable
Specification:

Model	Z5030V	Z5035V	Z5040V	Z5050V
Max. Drilling dia.(steel) and tapping dia.(mm)	30/M20	φ35/M22	Φ40/M24	Φ50/M32
Max.Travel of spindle(mm)	125	190	200	200
Max.Distance from spindle to generating line of column(mm)	280	340	360	360
Max.Distance from spindle nose to surface of worktable.(mm)	650	665	590	590
Max.Distance from spindle nose to surface of base worktable(mm)	1120	1195	1175	1175
Max Travel of worktable and bracket/Manual(Mechanical)(mm)	650	570(450)	530(410)	530(410)
Swivel angle of worktable	±45°	±45°	±45°	±45°
Spindle taper bore	MT3	MT4	MT4	MT4
Spindle speed steps	stepless	Stepless	Stepless	Stepless
Spindle speed range(r/min)	70-249,249-3500	60~3600	50~2200	50~2200
Spindle feed steps	3	4	4	6
Spindle feed range(mm/r)	0.1,0.2,0.3	0.1;0.2;0.3;0.4	0.1;0.2;0.3;0.4	0.08~0.50
Dimension of worktable(mm)	450 x 380	520×440	580×460	580×460
Effective working area of worktable(mm)	335 x 340	405×395	445×435	445×435
Diameter of column(mm)	φ110	φ140	Φ160	φ180
Power of motor(kw)	1.1	1.5	2.2	3
Machine dimension(mm)	785 x 480 x 2035	849×545×2290	940×680×2405	950×680×2405
Packing dimension/Net weight and gross weight(mm)	960 x 590 x 2150	1000×650×2220	1170×680×2300	1170×680×2300

---
