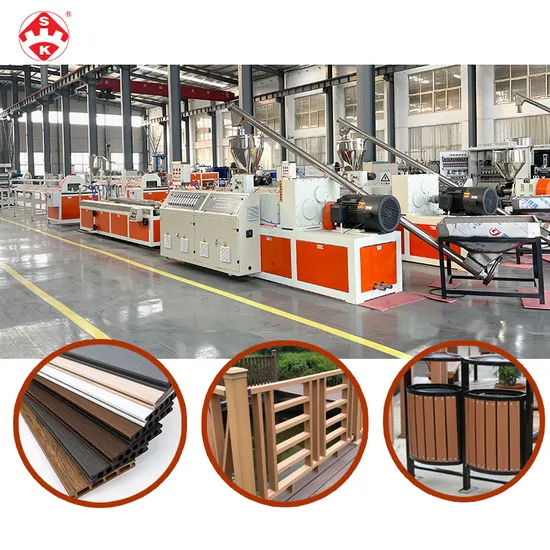

WPC Machine Wood Plastic Composite decking hollow solid deck flooring Post Composite Profile Rail Extrusion Production Line

Product Description

WPC Machine Wood Plastic Composite decking hollow solid deck flooring Post Composite Profile Rail Extrusion Production Line

We adopt abroad advanced technique and the news craftwork.
It is main used for wood-plastic decking board floor and wpc profile production line. The thicknessof floor: 5-15mm, width: 100-300mm.
Multi matching parts of this line are used name brand product in the world.
Combining our many years' experience, we make this line more reliable and perfect. The Decking floorings which produced by this line, has may advantages.
Such as smooth and clean suface, anti-corrupt, fire-proof, water-proof,high insulation and so on. With special designed screw, barrel. Moule and producing process, this line can produce PE PP and wood powder profile.
Equipmet List:
Machine Introduction
SJSZ65x132 Twin Screw Extruder
Extruder type: SJSZ65x132 Capacity: 250kg/h
Inverter: Schneider or Delta
Contactor: SIEMENS,
Motor: SIEMENS,37KW
Temperature control: OMRON
Vacuum pump: 4KW
Feeding: screw feed with motor
Calibration Platform
Length: 3000mm Electrical forward moving
Driving motor: 1.5kw
Vacuum motor & water motor equipped
Recycling water cooling
Material of platform: stainless steel
Cutting Machine
Cutting motor: 2KW Blade control: cylinder
Automatic length metering, cut as setting meters
Auxilary Machine: 500L Mixer
Electric voltage condition:AC220V±10% 50Hz 3P+E
Compressed air:0.4~0.6Mpa G.(DP≤10ºC)
Cool off water: ≤15ºC 0.3~0.4Mpa 90L/min
Output: 450-500kg/ Power: 55K/75KWtwo speed power
heating method: /self-friction
Temperature control type: RKC/RKC Thermometer
Material of pot cover: The aluminum metal alloy casts
pot cover start&stop control: air control
putout control: air contro
Why Choose Us?
Strong Strenth
Founded in 2002.
20000 square meters factory
Over 50 workers

Rich Experience
Over 500 lines exported
Sell to over 20 countries
Cover all of extrusion products

Professional Support
Machine & Specification Making
Details infos classfication
Picture & videos sharing
Formula & operation support
Good After Service
Full set of drawings
Full set of operation manual
Free running test
Free online technical support

---
