Product Specification

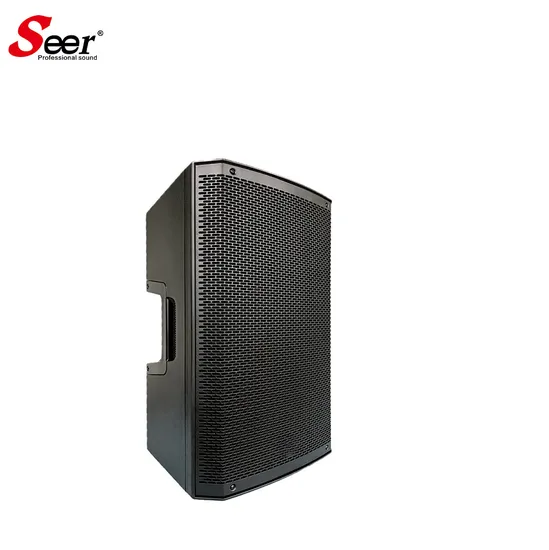

| Model Active | ZP-10A |
| System Type | 2-WAY 10" Active Vented Loudspeaker System |
| Power System | Bi-AMP DSP Processor, 1000W continuous RMS (Class D LF-650W+ HF-350W), 4000W peak (2600W LF + 1400W HF) |
| Continuous Power | LOW: 650W / HIGH:350W |
| Program Power | LOW: 1300W / HIGH:700W |
| Transducer Low | 10" (246mm), cone |
| Transducer High | 1" Throat Compression Driver |
| Crossover Frequency | 3.0kHz |
| Maximum SPL | 129dB (peak), 126dB (continuous) (dB-SPL @ 1 m) |
| Frequency Response | 54Hz - 20kHz (-3 dB) |
| Frequency Range | 48Hz - 20kHz (-10 dB) |
| Horn Coverage | 90° horizontal x 60° vertical (nominal) |
| DSP Preset Modes | LIVE-MUSIC-SPEECH-MONITOR |
| Connectors | 2 x XLR+1/4" (6.35mm) TRS combo inputs (Line/Mic ), 1 x 3.5 Stereo AUX IN, 1 x Stereo BT (app control), 1 x XLR mix output (Link), 1 x IEC power cable input |
| Bluetooth Stereo | Stereo L/R-VOL-Pair-Link Switch (app control) |
| Controls | Volume Control knob, AC Power switch, Line / Mic toggle switch, DSP Preset Switch, BT Pair and Link Switch |
| Indicators | Signal / Clip Limiter LED, Four DSP Mode LEDs, BT Pair-Link LED, Power Switch LED |
| Power | Connection: IEC, Voltage: 110-120V~, 220-240V~, 50/60Hz, switchable, Fuse: 100-120V T10AL AC250V, or 220-240V T5AL AC250V, Consumption: 800W |
| Electronic Protections | Electronic clip, thermal and transducer overdrive protection |
| Enclosure | Trapezoidal, injection-molded, polypropylene with perforated steel grille, 2 x Handles (left and right sides) |
| Mounting / Installation | 36mm standard pole-mount, suspended with integral M10 points, wedge monitor |
| Dimensions (HxWxD) | 528mm x 332mm x 315mm (20.8" x 13.1" x 12.4") |
| Weight | 27.1 lbs / 12.3 kg |
Guangzhou Seer Audio CO.,LTD is a professional sound system manufacturing company. Our factory specialize in manufacture speaker cabinet, loudspeaker, Tweeter component, amplifier, processor and stage equipment. Our sound system company was established in 1997, and the manufacturing company was established in 2004.We focus on the quality and stability of our products and aim to provide high quality products to our customers. Seer Audio use the most advanced engineering to make sure every product meets the requirements of the most professional and demanding applications. We are always working on expanding the scope of business all over the world. Our products won great deal of honour, such as ISO 9001:2000 quality system authentication, all of our goods pass ROSH test and got CE certificate. We have full confidence in our factory and our future.
A1.Sure. We accept OEM/ODM orders. Just let us know your requirements.
A2.We are a 100% manufaturer located in Guangzhou.We specialize in R&D, manufaturing, sales.
A3.The high season takes a month and the low season takes 15 days.
A4.The minimum order quantity is one, we only accept T/T.
A5.Our company was established in 1997 and has a history of 27 years.
