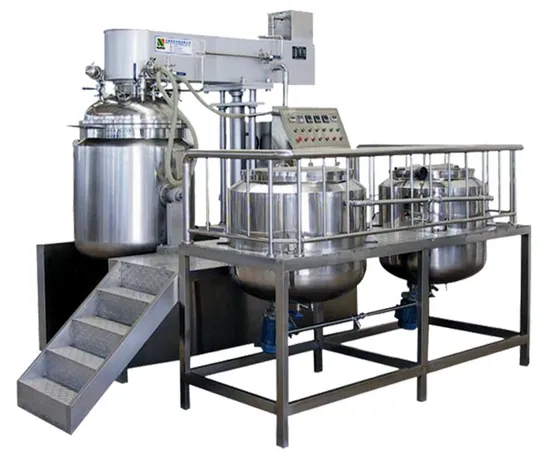

High Speed Homogenizer Vacuum Cream Emulsifier Mixer Machine

Product Description

High Speed Homogenizer Vacuum Cream Emulsifier Mixer MachineApplications
The equipment is suitable for emulsification of the pharmaceuticals, cosmetic, fine chemical products, especially the material having high matrix viscosity and solid. It works by homogenizer, fixed stirrer, scrapers residues stirrer.
Composition:
ZJR Vacuum Emulsifying Mixer Series is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc.
It can make various facial cream, lotion, shower, ointment, shampoo, paste, gel, honey, meat, milk, sauce etc.
Features:
The pot cover is automatic rising type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work. The material sliming, emulsification, mixing, dispersing, etc. What will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, the polishing of surface of the mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment).

Name		ZJR-150	ZJR-200	ZJR-250	ZJR-350
Emulsifying Tank	Design Volume (L)	150	200	250	350
	Capacity (L)	120	160	200	280
	Scraper Stirring Power (KW)	1.5	2.2	2.2	2.2
	Scraper Stirring Speed (rpm)	0-86	0-65	0-65	0-65
	Homogenizer Power (KW)	4	4	4	4
	Electrical Heating Power (KW)	6	8	12	12
	Homogenizer Speed (rpm)	2800	2800	2800	2800
Water Tank	Design Volume (L)	100	120	160	250
	Capacity (L)	80	95	128	200
	Power (KW)	0.55	0.75	0.75	0.75
	Speed (rpm)	1400	1400	1400	1400
	Electrical Heating Power (KW)	6	8	8	12
Oil Tank	Design Volume (L)	75	100	130	250
	Capacity (L)	60	80	105	150
	Power (KW)	0.55	0.75	0.75	0.75
	Speed (rpm)	1400	1400	1400	1400
	Electrical Heating Power (KW)	6	8	8	12

---
