Laboratory Twin Screw Extruder/20mm Lab Scale Twin Screw Extruder/20mm Lab Extruder /Small Twin Screw Extruder

Product Description

Model	PSHJ-20	PSHJ-35	PSHJ-50	PSHJ-65	PSHJ-75	PSHJ-127
Screw Diameter:MM	21.7	35.6	50.5	62.4	71	126
Central Distance	18	30	42	52	60	102
Length Diameter Ratio	28-52	28-52	28-52	28-52	28-52	28-52
Main Motor Power	4-5.5	22-45	75-110	110-185	160-280	90-160
Max.Screw Speed:RPM	600	600	600	600	600	600
Output Torque per Shaft:N.m	32-43	175-358	597-875	875-1472	1273-2228	850-1528
Reference Output: KG/HOUR	44336	20-80	80-200	150-350	300-600	800-1500

Product Description

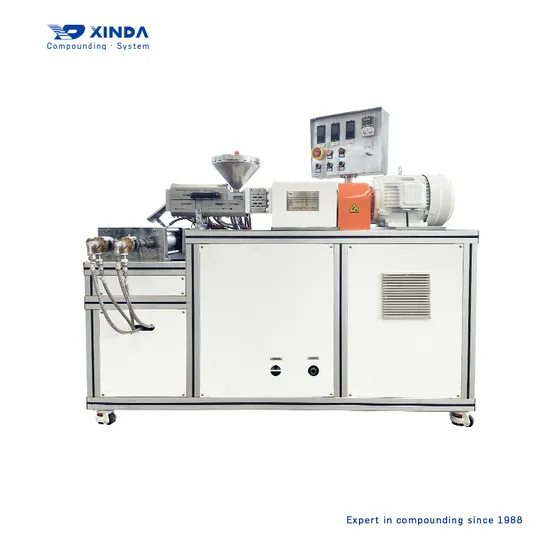

XINDA Clamshell Barrel Co-Rotating twin screw extruder for Master batch Compounding
Masterbatch is a concentrated mixture of pigments and/or additives encapsulated during a heat process into a carrier resin which is then cooled and cut into a granular shape. Xinda Co-rotating twin screw extruder will melt, mix, kneading the dry blend of resin carrier and pigments and additives and pelletize into perfece master batch pellets by water strand pelletizing. Xinda Clamshell barrel Co-rotating twin screw extruder can be opened for cleaning, checking, and maintenance. It is ideal for color changing for Master batch compounding.
XINDA PSHJ Clamshell Barrel Co-rotating Twin Screw Extruder for Master batch !!!
The barrel can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements, in consideration of the machine's versatility in other general applications.
