Highly Efficient Dispatching Winches with Electric Drive

Product Description

Product Description

Introduction of Highly Efficient Dispatching Winches With Electric Drive A dispatch winch is a mechanical device used for lifting and handling items. It is driven by an electric motor, and through the gear and chain transmission force, the winch wire rope is wound on the winch drum to lift or lower items. Scheduling winches are usually used in industry, construction, warehousing and other fields, and can be used for a variety of operations such as lifting heavy objects, handling goods, and elevating and lowering people. Scheduling winches are widely used in various industries, such as lifting in building construction, handling goods in warehousing and logistics, and lifting and lowering materials in factory production lines. Its appearance greatly improves work efficiency, reduces labor costs, and enhances operational safety. zmwm17 Product Parameters

Parameter of Highly Efficient Dispatching Winches With Electric Drive

Model specification		JD-1	JD-1.6	JD-2.5	JD-4
Wire rope static tension KN		10	16	25	40
Rope speed(m/s)	Min.	0.433	0.733	1.16	0.95
	Max.	1.033	1.399	1.45	1.48
	Average	0.733	1.066	1.31	1.22
Wire rope size	Wire rope Dia.(mm)	12.5	15	18.5	21.5
	Rope length(m)	400	400	500	850
Drum size (mm) (Dia.*Width)(mm)		Φ224*304	Φ310*400	Φ620*580	Φ580*600
Total reduction ratio		41	32.5	42.24	32.75
Dimension (mm)		1120*766*727	1435*1217*1255	1830*1794*1390	2200*1965*1425
Weight(with motor)(kg)		542	1370	2500	3750
Flameproof motor	Model	YBJ-11.4	YBJ-25	YBJ-40	YBK3-280M-6
	Power(KW)	11.4	25	40	55
	Turn number(r/min)	1460	1465	1470	980
	Voltage(V)	380/660	380/660	380/660	380/660

Detailed Photos

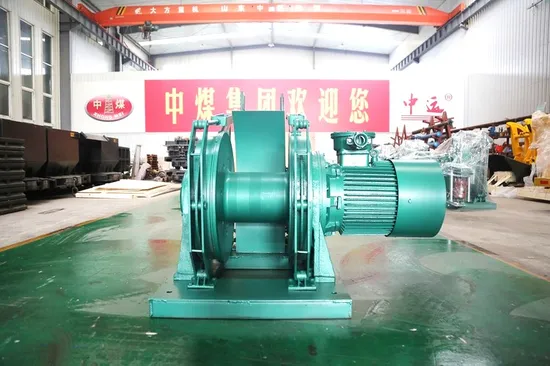

Pictures of Highly Efficient Dispatching Winches With Electric Drive

---
