Cotton Stalk Pellet Mill Machine & Pellet Production Line for Biomass Fuel& Pellet Plant Production

Product Description

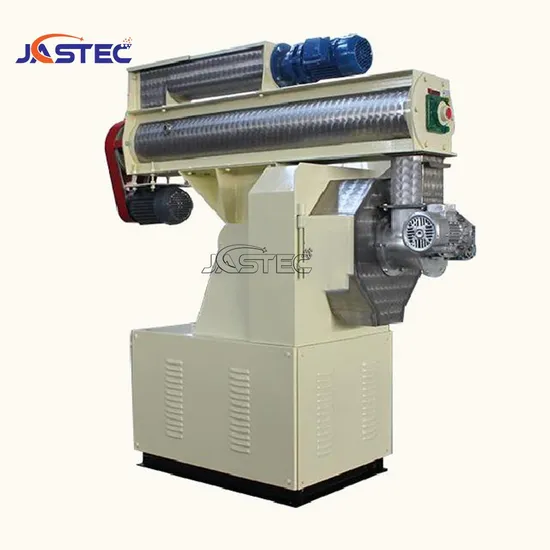

Cotton Stalk Pellet Mill Machine & Pellet Plant
Application: Feed/biomass pellet plant
Capacity:0.6 t/h - 10 t/h
Pellet Size:2-12mm
Model:HKJ25J
Whereas wood pellets from forestry residues already have successfully established technologies and markets, there is a need to develop the pelletization of agricultural biomass, such as cotton stalk, corn stalk, etc., which is periodically planted and harvested, and holds great energy potential, especially in rural areas. Cotton stalk pellet mill machine maker is a new type of biomass pellet machine with high efficiency and low consumption produced by richi machinery. Its raw materials are mainly cotton stalk, cotton stem, cotton husk other agricultural wastes with similar properties.
Applications Of Cotton Stalk Pellet Mill Machine & Pellet Plant
Cotton stalk is a by-product of cotton planting industry. It refers to cotton stalks from which branches and leaves and bolls are removed. It has a high degree of lignification, rich bast fiber, high bulk density and high calorific value. Cotton stalks are very good after being crushed and compressed.
The implementation of cotton straw mechanized harvesting and processing and recycling technology can increase labor productivity, reduce labor intensity of manual operations, and promote the process of agricultural modernization; at the same time, it will convert cotton production waste into high-quality raw material resources, turning costs into valuables, and reducing waste.
The destruction of the ecological environment will increase the added value and competitiveness of agricultural products, promote agricultural efficiency and rural economic development, and realize a virtuous cycle of agricultural production.
Approximately 80 countries worldwide produce cotton, the U.S., China, and India together provide over half the world's cotton. Other major producers are Uzbekistan, Pakistan, Brazil, Turkey, Australia, Turkmenistan, Greece, Syria and Egypt.
Technical Features Of Cotton Stalk Pellet Mill Machine The cotton stalk pellet machine is widely used for pelletizing of light biomass substances, such as wood chips, sawdust, straw, husk, shells, pasture, chrysanthemum, palm leaf and so on; The cotton stalk pellet mill feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of light substances with the density of 0.15-0.65g/cm3; The feeder, conditioner and chute of cotton stalk pellet making machine are made of stainless steel with long service life; The cotton stalk granulator machine is with magnet and over load protection system which can protect machine well during production; The cotton stalk pellet forming machine makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey; The bearings and oil seals in the main drivers are imported to ensure highly-efficient, stability and credibility.
The solidification and utilization of cotton stalks means that cotton stalks are compressed under a certain pressure into a kind of pellet fuel that can be burned like coal. The combustion value of cotton stalk pellets is close to that of wood, which is better than other crop stalks.
Cotton stalk molding fuel can replace coal in many situations. Its volumetric calorific value is equivalent to median coal, and its combustion emissions are far less than coal. The net CO2 emissions are Zero, the fuel cost is close to that of coal. At present, as a fuel for industrial boilers and civilian boilers, it has a strong price advantage and environmental protection advantage in large and medium-sized cities that are gradually banning coal-fired boilers.
Cotton Stalk Pellet Mill Specification

Model Specifications	HKJ25M	HKJ35M	HKJ45M
Main engine power (KW)	22	30×2	55×2
Feeding power (KW)	0.75	0.75	1.5
Forced feeding power (KW)	0.37	0.75	1.5
Output (t/h)	0.1-0.2	0.5-0.8	1.5-2

Cotton Stalk Mill projects Cotton Stalk Pellet business plan Working Principle Of Cotton Stalk Pellet Mill Machine
During its solid and stable development in the global market, Richi Machinery has gradually established a marketing network made up of more than 100 technical experts, covering 109 countries and regions so as to constantly provide its worldwide customers with one-stop, integrated, highly efficient, and convenient pre-sales, sales and after-sales services.
How to make cotton stalk pellets? Build a cotton stalk pellet production line! Biomass pelletizing process refers to converting biomass wastes such as cotton stalks into bio-fuel pellets, making it easier to put it into more useful use than before. Before cotton stalks are pelletized, it's important to consider the moisture content as well as the size of the stalks.
The suitable size should be less than 6 millimeters and the proper moisture content to be 18%. Then, they can be compressed into fuel pellets by use of biomass cotton stalk pellet mill.
As the cotton stalk pellets leave the cotton stalk pelletizing equipment, they will be soft and hot hence, the cooling process takes place to make the pellets durable and strong. All the cooled pellets will then be passed through a vibrating screen to get rid of all fines from the pellets. After which the cotton pellets are then packaged to be put into desired uses such as Biomass fuel and among other uses.
Why Choose Jastec?
More professional and better understand you. 1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).
3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained
good performanceand a well-known reputation.
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
