6-51 mm Rubber Hose Pressing Tools Automatic Hydraulic Pipe Crimping Machine

Product Description

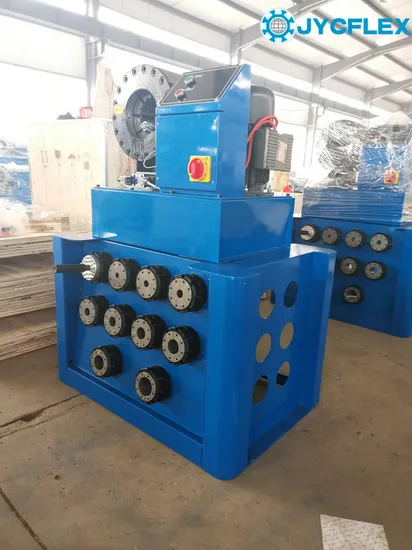

JYC-P32G Hydraulic Hose Crimping MachineThis hose crimping machine can crimp inner diameter from 1/4" up to 2'' 1-4 steel wire hydraulic hoses, up to 2inch 4wire hoses each time.
JYC-P32G is automatic machine, including 10 sets of dies, 3KW motor power, dies locker and foot pedal. Product Feature
High Efficiency High Precision Good Product Consistency
Low labor Intensity Good Management Simple In Operation
Product Description

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name	hose crimping machine	Machine model	JYC-P32G
Machine type	hydraulic crimping tool	Application	crimping hose
Crimping range	6-51mm(1/4--2 inch)	System pressure	31.5Mpa
Crimping force	3200KN	Operation mode	electrical
Dies set	10 sets	Die length	70mm
Dimension	450*630*600mm	Weight	300kg
Voltage	220V/380V	Power	3KW/4KW
Rated Flow	10ml/r	Prodection Class	IP54

Mould dies
Dies set with hardness of 59-63 HRC.
No deformation after long time use.Micrometer
Rotary positioning
Scale adjustment
High precisonSimple design panel
Easy to operate crimping even for new user.Pedal switch
Safe and stable, flexible and convenient, free to move when processing long materials, saving time and releasing hands.Oil display
Hydraulic visual window.
Hydraulic oil level can be display, monitor the oil quantity at any time to ensure the normal operation of the equipment.
1) P32G hydraulic hose crimping machine is ideal for crimping 51mm 4spiral hose.Equipped with a foot pedal, making the crimping easier to control,and very convenient for free hand operate.
2) The buttons are on the right side, convenient to control the whole crimping work and see the whole crimping progress.
3) With large working stroke, even elbow fitting can be crimped.Finn power style hose crimper.
4) Die sets use high hardness special mould steel, under normal use, the die sets can be used for more than 10 years without problem.
5) This hydraulic hose crimper features small and portable appearance, big force, low noise and easy to operate.
Product Application
Customer Feedback
Company Profile
Our servicePre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service*24x7 service
* Training how to install and use the machine
* Engineers available to service machinery overseas.
Certifications
FAQ:
1.Question:What Certificates do you have ? Answer:CE,ISO
2.Question:What is the MOQ? Answer:1 set for you test.
3.Question:What is the delivery time? Answer:The machines are all in stock now, that can be delivered as you need.
4.Question:What is the payment? Answer:We recommend T/T in advance, as most of our crimping machine model are in stock. L/C,western union,paypal and money gram also can be accepted.
5.Question:Can you make customized designs or LOGO? Answer:Sure, we could customize the color,logo and so on as your request.

---
