Product Introduction

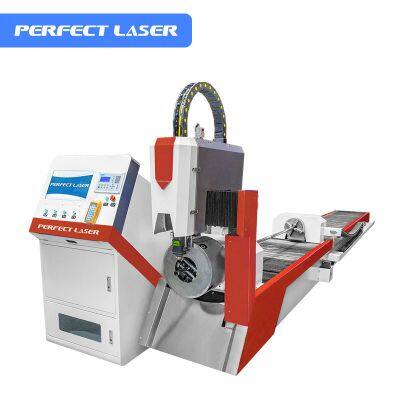

Perfect Laser is a manufacturer specializing in the development and production of laser pipe cutting machine. In order to meet the different needs from customers, this kind of laser pipe cutting machine has been developed and produced. It has two models: PE-F2060/PE-F3080. This laser pipe cutting machine uses two-side mutually moving laser cutting system to increase the area of processing. The negative pressure track-type working platform is equipped with left and right feeding and receiving devices, which makes tube laser cutter possible to discharge, cut, and receive material at one go, greatly reducing the time between processes, and improving work efficiency and processing output.
Product Features
1. This pipe laser cutting machine has the function of automatic positioning: only need to feed manually to complete the cutting, it is an ideal, efficient and convenient cutting machine for metal pipe laser cutting.
2. The laser pipe cutter covers a small area, the structure of the tube laser cutter is precise and beautiful, and the work is solid and firm.
3. High precision: Adopt imported IPG laser source to ensure good laser beam quality. The cutting tube length of the tube laser cutter can reach 6/8 meters, cutting pipe diameter of 20-200 mm /20-300 mm. Adjustable with scale and good cutting quality.
4. Batch processing: The daily output can reach 15 thousand pcs, the laser pipe cutter is suitable for mass cutting operations.
5. Suitable for thin pipe laser cutting, coat hanger tube, mop pipe, mosquito net pipe, curtain tube and so on.
6. The operation of the pipe laser cutting machine is simple and no professional training is needed. The speed of the tube laser cutter is very high and the output is more than 5 times that of manual operation.
7. Fast speed: no deformation and burr of incision, the speed of the laser pipe cutter is up to 1 second spent on each cutting.
8. The laser pipe cutter has better effect in cutting thin circular pipes, with super low cost, no noise and no dust.
9. High flexibility: There are many types of cutting pipes, such as round pipe, square tube, flat tube and so on. The laser pipe cutter can also support three dimensional machining such as pipe laser cutting, punching, hollow carving and bevel cutting.
10. Equipped with multiple different auxiliary gas inputs, automatic conversion of high and low pressures and different gases.
Application
The laser pipe cutting machine is mainly used for pipe processing in fitness equipment, office furniture, kitchen cabinets, oil screen tubes, lamps and lanterns, automotive exhaust pipes and so on.
Technical Data
Model
| PE-F2060/PE-F3080 Tube Laser Cutter
|
Cutting tube length
| 6 / 8 (m)
|
Cutting pipe diameter
| 20-200 / 20-300 (mm)
|
Laser
| Imported laser
|
laser power
| 500W-4000W
|
carrying capacity
| 25kg/m
|
Positioning degree
| ±0.03mm
|
Repeated positioning degree
| ±0.01mm
|
Large location speed
| 75m/min
|
accelerated speed
| 1g
|
Cutting speed
| Depending on material and laser power
|
Power supplied
| 25kg/m
|
>>
