Product Description
Product Description

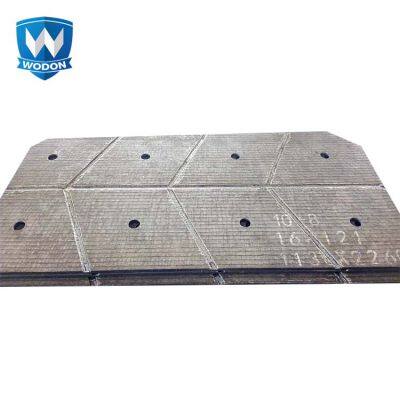

Product DescriptionTEKA Mixer wearing plate and blade superalloy wear linerswear plate linings, mixed concrete batching plant and mixer wear plate liners Product Namemixed concrete batching plant and mixer WEARING PLATE LINERMaterialQ235/Q345+Chromium carbide overlayBase metalQ235/Q345Hardfacing layerChromium carbide overlayChemical compositionC: 3.0-5.0% Cr:15-37%HardnessHRC56-63MicrostructureCarbide (Cr7C3)volume fraction 30~50%Wear resistanceHigh wear/abrasion resistanceFlatness tolerance±3mm/mThickness toleranceuniform overlay thickness, with tolerance within 0-0.5mmImpact resistanceMediumTechnologyHardfacing, open arc welding, submerged arc welding Plate Sizecustomized sizes, curved with contersunk holes Main thicknesses3+3,4+4,5+5,6+4,6+5,6+6,8+4,8+5,8+6,8+7,8+8COMPANY INFO Packing & DeliveryPacking Details : steel pallets or plywood carton and pallets1. Special logistics package 2. Welding wire 150/200kgs package 3. Welding wire 15kgs vacuum package 4. Welding wire 50kgs package 5. Nude package 6. Complete packageCustomer VisitsCustomer Comments and feedback: Good quality and flatness is our first sight. After discussing on their booth, our team think we find a better producer with very good and competitive price and quality. One more important thing is their professional, skilled and young technican team. The Wodon abrasion and impact wear plate samples consisted of a high chromium white iron deposit on a steel substrate. The hard facing microstructure contained typically a high volume percent of primary carbides. The primary carbide sizes were typically less than 25μm in diameter, which was considered good for hard facings of these types. La fabrica de Wodon nos ha impresionado por el rigor del control de calidad y la organizacion. Los productos tambien presentaron buena performance en nuestros testes y estamos satisfetchos con la parceria que estamos desarrollando. FAQQ: Are you trading company or manufacturer ?A: We are ISO certificate factory. Q: Are you able to produce customized chemical composition and dimension?A: Yes, we could offer the welding wire and wear plate according customers' requirement.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Other payment terms are negotiable. TEKA Mixer wearing plate and blade superalloy wear liners
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
