Universal Mechanical Radial Drilling Machine

Product Description

Product Description

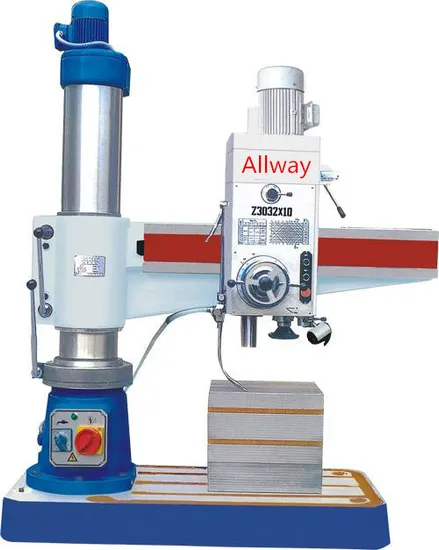

Universal radial drilling machine (Z3035X10)
Main Features:
1.Optimum design conforming to international standard.
2.Key precisely machined parts precision machining
3.Flexible reliable; Perfect feature.
4.High precision, High strength.
5.Economical cutting and Long life.
6.Functions: Drilling; counter boring; reaming; boring; spotting; tapping.
7.With comatic automatic ascent and descent
8.With confident construction.
9.With mechanical gear change, convenient to operate.

Mechanical transmission
Mechanical clamping
Mechanical changing speed
Automatic take off and land
Automatic feed

With standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts.

Optional accessories:
Quick instead chuck, Tapping chuck, Grease gun.
operations:

Model Z3035×10 Code No. 402004 Max drilling capacity mm Cast Iron 35/Steel 32 Spindle feeds mm 0.1,0.16,0.25 Spindle taper MT4 Spindle speeds steps mm 6 Distance spindle axis to column generating line mm 250-950 Distance spindle nose to working surface of base mm 340-1000 Spindle travel mm 190 Overall size mm 1530×700×2100 Power of main motor Kw 1.5/2.2 Motor power Kw 2.2/0.75 Weight of machine Kgs 1100

---
