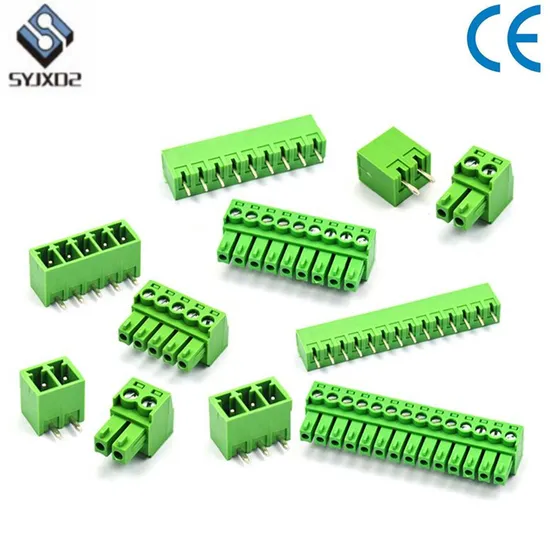

15edg3.5mm 3.81mm 24poles Phoenix Contact Male and Female Terminal Blocks of PCB Power

Product Description

Customer order samples then to test and check quality are welcome.Mixed samples also acceptable but free!
Purpose of cooperation:Quality first ,Help customers solve problems get the right parts!
Basic Info

Model No:	SY15EDGK-3.81/3.5mm-24Pin	Wire Rang:	28-16AWG
Material:	Cooper & nylon	Temperature Rang:	-30ºC~+120ºC
Pitch:	3.81/3.5mm	Max soldering:	+250ºC 5second
Screws:	M2 Steel Zinc plated	The number of poles:	2P 3P 4P 5P 6P 7P 8P 9P 10P 12P 14P 16P 18P 20P 22P 24P 26P
Pin header:	Brass Tin plated	Square box:	Brass,Nickel plating
Housing:	PA66,UL94V_0	Application:	PCB
Type:	High Temperature Electric Connector	Contact Termination:	Welding Connection
Production Process:	Injection Molding	Interface Type:	AC/DC
Housing Colour:	Green	Transport Package:	Standard Export Package
Rated voltage:	300V	HS Code:	8536901900
Rated current:	8A

PCB PLUGGABLE/PLUG-IN TERMINAL BLOCKS
PCB universal screw terminal blocks,this typical of the screw connection system is characterized by the easy connection and extremely high contact strengths.Provide the wire size from 0.08mm2 to 10mm2,Avaliable with different pitches from 2.54mm to 15mm.
We made the professional Terminal Blocks connector and supply One-stop Service for all the PCB Connection !
Quality is first,Credit is the base",try to provide first class products and services. We welcome all friends to vist us and make friends in the future days !
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible

---
