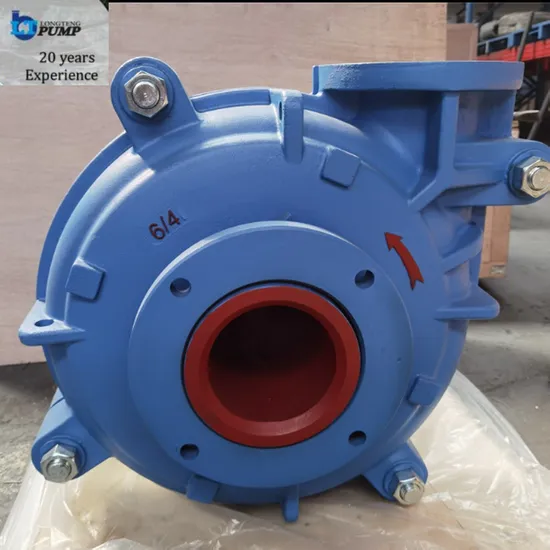

20+ Automation Centrifugal High Pressure Ultra Chrome Alloy Slurry Pump 6*4 for Distributor

Product Description

Product Description
Horizontal Slurry Pump
Slurry pumps, on the other hand, are specifically designed to handle abrasive and high-concentration slurries. Slurries consist of a mixture of fluid and solid particles, such as ores, minerals, sand, and other abrasive materials. Slurry pumps utilize centrifugal force to transport the slurry, with a focus on efficiently handling solids-laden fluids. These pumps are built with robust materials and wear-resistant components to withstand the erosive nature of the slurries they encounter. Slurry pumps are widely used in mining, mineral processing, dredging, and other industries where the efficient transportation of abrasive slurries is crucial.
Features
· Size range (discharge)
1" to 14"
25 mm to 450 mm
· Capacities
to 22,000 gpm
to 5,000 m3/hr
· Heads
to 240 ft
to 73 m
to 300 psi
to 2,020 kPa
Pump Type include:1.5/1,2/1.5,3/2,4/3,6/4,8/6,10/8,12/10,14/12,16/14,20/18 etc.

Pump Model	Allowable Max. Power(kw)	Clear Water Performance
		capacity Q		Head H(m)	speed n(r/min)	Max.eff. η%	NPSH (m)	Impeller Dia(mm)
		m3/h	l/s
1.5x1B	15	10.8-25.2	3-7	7-52	1400-3400	35	2-4	213
2x1.5B	15	25.2-54	7-15	5.5-41	1000-2600	50	2.5-5.5	178
3x2C	30	36-75.4	10-21	13-39	1300-2100	55	2-4	213
4x3C	30	79.2-180	22-50	5-34.5	800-1800	59	3-5	245
4x3D	60
6x4D	60	144-324	40-90	12-45	800-1350	65	3-5	365
6x4E	120
8x6E	120	324-720	90-200	7-49	400-1000	65	5-10	510
8x6R	300
10x8ST	560	540-1188	150-330	12-50	400-750	75	4-12	686
12x10ST	560	720-1620	200-450	7-45	300-650	80	2.5-7.5	762
14x12ST	560	1152-2520	320-700	13-14	300-500	79	3-8	965
16x14TU	1200	1224-2754	340-765	9-43	250-450	82	3-8	1067

Components:Impeller
The impeller, either elastomer, or high-chrome material, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid.
Casing
Split outer casing halves of cast contain the wear liners and provide high operation pressure capabilities. The casing shape is generally of semi-volute or concentric, efficiencies of which are less than that of the volute type.
Shaft and Bearing Assembly
A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy-duty roller bearing are housed in a removable bearing cartridge.
Shaft sleeve
A hardened, heavy-duty corrosion-resistant sleeve with O-ring seals at both ends protects the shaft. A split fit allows the sleeve removed or installed quickly.
Shaft Seal
Expeller drive seal, Packing seal, Mechanical seal.
Drive Type
V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
Benefits
· Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
· Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints.
· Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
· Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
· Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
· One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance
Outer casings
Designed to achieve higher operating pessures and withstand severe dutiesDesigned for easy assemblyLifting points about the centre of gravity for safer removal and assemblyImpeller
Increased pump efficiency lowering overall lifecycle costingDesigned for extended wear lifeCustomer materials for heavy duty applications with higher tolerance to abrasion and corrosive slurry servicesLiners
Less turbulanceDesigned for extended wear lifeLatest wear resistant materialsInterchangeability between elastomer or metal liners
Sealing chamber
Increased sealing efficiencydesigned to reduce gland service water requirementExpeller, mechanical and Packing sealing arrangements Bearing assembly
Designed for maximum operating life and reduced maintenanceCommon assembly for up to 4 pump sizes lowers operating and inventory requirementsSafe and easy to maintainMotor drive include CV , CRz, ZVz, DCz four types.
We offer a Various of SLurry Pump and Spare parts

Company ProfileLongTeng Machinery have gained certification of ISO 9001:2000, and holds a compelte line for metal lined slurry pumps, like casting workshop, heat treatment, machining, assembling, quality testing etc.
LongTeng Machinery Co., LTD manufactures high quality metal and elastomer replacement parts which are fully interchangeable with well-know Brand pumps. With technical expertise, high quality, fair pricing, and product availability for the end-users or distributors, we got a very good reputation from customers and will continue to serve all your needs with full heart.
Regarding the operation and detailed application of Horizontal Slurry Pumps, please contact us and we will give you professional advice.
Certifications
Our AdvantagesWe are Shijiazhuang Long Teng Machinery Co. Ltd from China,a manufacturer and exporter of slurry pump and spare parts with more than 20 years experiences.We are delicated to save your cost and increase your profits.First,we can control our quality from materials until the pumps,so the quality is reliable.There are a series of test in our factory,such as Material Composition inspection,Finished parts composition inspection,Hardness test,Dimension test,Static balance and Dynamic balance testing.For pumps,we will do pressure test,so that it can be sealed and reliable,smooth operation.Next,for some commonly used spare parts,we have in stock,so the delivery time is shorter.Finally,we can provide perfect service system,including pre-sale service,after-sale service,even warranty & replacement service if any quality problems.So If choose us,you will not have any worries!Exhibitions:
Appilication of Slurry Pump
1.Mining: Horizontal slurry pumps are extensively used in mining operations for transporting abrasive slurries containing minerals, ores, and tailings.
2.Mineral Processing: These pumps play a crucial role in mineral processing plants for handling slurries involved in processes such as grinding, flotation, and dewatering.
3.Power Generation: Horizontal slurry pumps are employed in power plants for handling fly ash, bottom ash, and other slurry by-products generated during coal combustion.
4.Chemical Processing: They are utilized in chemical plants for transporting corrosive slurries, acids, and alkalis in various chemical processes.
5.Sand and Gravel: Horizontal slurry pumps are employed in sand and gravel operations for dredging, transporting, and dewatering applications.
6.Construction: They are used in construction projects for tasks such as tunneling, excavation, and slurry wall installation.
7.Environmental Remediation: Horizontal slurry pumps are utilized in environmental remediation projects involving the transportation of contaminated slurries and sediments.
8.Industrial Processes: These pumps find applications in various industrial sectors, including metal processing, cement production, and wastewater treatment.
The versatility and robustness of horizontal slurry pumps make them suitable for a wide range of industries and applications where the efficient handling of abrasive and corrosive slurries is required.
Our Project
Packaging & ShippingStandard and strong Wooden Case for Exporting,in order to ensure the goods can reach you intactly
Help you Choose a Suitable Pump introduction:
What Type of Pump is Best for Slurry?
In the world of slurry handling, choosing the right pump is crucial for efficient operation and optimal performance. With a wide range of pump options available, it's important to understand the different types and their suitability for slurry applications. In this article, we will explore the various pump options and highlight the best type of pump for slurry handling.
Centrifugal Slurry Pumps:
Centrifugal slurry pumps are widely recognized as the go-to choice for slurry transportation. These pumps use centrifugal force to propel the slurry, making them highly efficient and capable of handling abrasive and high-concentration slurries. With their robust construction and ability to handle large particle sizes, centrifugal slurry pumps are ideal for mining, mineral processing, and other industries where heavy-duty slurry handling is required.
Submersible Slurry Pumps:
Submersible slurry pumps offer the advantage of being submerged directly into the slurry, eliminating the need for priming and providing greater flexibility in installation. They are particularly useful in applications such as dredging, sand and gravel extraction, and underwater slurry pumping. Submersible slurry pumps are designed to withstand the harsh conditions of submersion and are highly efficient in handling abrasive slurries.
Piston Diaphragm Pumps:
Piston diaphragm pumps, also known as membrane pumps, are well-suited for handling highly viscous and abrasive slurries. These pumps use reciprocating pistons or diaphragms to create pressure and move the slurry. With their ability to handle thick and sticky slurries containing solids, piston diaphragm pumps find applications in industries such as chemical processing, wastewater treatment, and ceramics.
Peristaltic Pumps:
Peristaltic pumps, also called hose pumps, are known for their gentle pumping action and ability to handle shear-sensitive slurries. These pumps use rotating rollers or shoes to compress a flexible hose, creating a squeezing action that moves the slurry forward. Peristaltic pumps are widely used in industries such as pharmaceuticals, food processing, and water treatment, where precise and low-shear pumping is required.
Conclusion:
When it comes to selecting the best pump for slurry handling, centrifugal slurry pumps are often the preferred choice due to their efficiency, versatility, and ability to handle abrasive slurries. However, the specific application and slurry characteristics should be considered to determine the most suitable pump type. Submersible slurry pumps, piston diaphragm pumps, and peristaltic pumps offer viable alternatives depending on the requirements of the application. By understanding the strengths and capabilities of each pump type, you can make an informed decision and ensure optimal slurry handling in your operations.
At Shijiazhuang LongTeng Machinery Co., Ltd., we specialize in manufacturing high-quality horizontal slurry pumps designed for the efficient handling of abrasive slurries. Our pumps are built with precision and reliability, making them ideal for export markets. Contact us for more information and let us help you find the best pump solution for your slurry handling needs.
FAQ1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Horizontal slurry pump, Vertical slurry pump(Submerged), Gravel/Sand pump, Dredger pump, ZGB Series Slurry pump, ZJ Series Slurrypump, Froth pump and spare parts or OEM.
3.Are you the manufacturer or trading company?We are professional manufacturer for slurry pumps and spare parts,experence more than 20 years in Shijiazhuang City.
4.What is your delivery time?
There are lots of inventory in our factory for the common pump parts.
5.What is your MOQ?
Also say no MOQ.
1 set for slurry pump and 1 piece for spare parts
In order to ensure the fastest feedback and correct quotation for you, we need to know the following information:1. Inlet diameter2. Outlet diameter3. Working conditions4. Head(m)
5. Flow(m3/h)5. Particle size & content6. PH
7. SGRegarding the operation and detailed application of Horizontal Slurry Pumps, please contact us and we will give you professional advice.
