CNC Deep Hole Drilling Machine with Double Spindle SD-1200 Horizontal CNC Drilling Machine for Mold

Product Description

Product Description

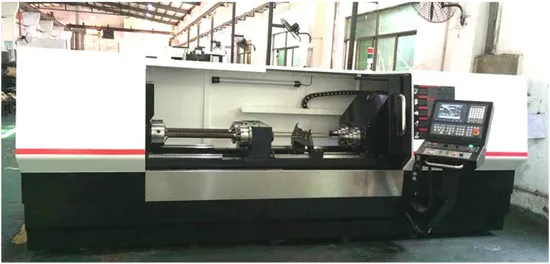

Joint Double Spindle CNC Deep Hole Drilling Machine SD-1200
The double spindle deep hole drill is a special machine tool designed for machining the center deep hole of shaft parts, aiming to provide customers with a solution of high efficiency, high precision and high finish for deep hole machining of shaft.
Standard-Configuration Accessories
Horizontal CNC Deep Hole Drilling Machine 1. High pressure oil cylinder
2. Taiwan control system
3. import servo system
4. Magnetic chip removal machine
5. Precision castings
6. Taiwan spindle
7. Taiwan roller linear rail with precision
8. Taiwan screw ground with precision
Optional Accessories 1. Depth drill tools with specific application for grinder 2. Cutting oil separator 3. Special cutting oil 4. lmport drill gun 5. Precision guide sleeve 6. Precision rubber jacket
Processing Case
Technical Specification: Product Parameters

Model	Unit	SD-1200
Inner diameter of drilling	mm	1.5-25
Maximum depth of drilling	mm	1200
Maximum diameter of workpiece	mm	72
Maximum length of workpiece	mm	1300
Maximum rotating speed of principle axis	rpm	6000
Workpiece rotation speed	rpm	60
Spindle feed speed	mm/min	0-1000
Spindle travel feed	mm/min	0-5000
Spindle motor power	kw	0.75*2
Total power of machine tool	kw	30
Coolant pressure range	mpa	3-10.5
Coolant flow range	L/min	0-64
Max load weight of table	kgs	5500
Machine Dimension	mm	5100*2000*2200

Detailed Photos Detailed Photos

Packing and shipping Packaging & Shipping
Company Information Company Information
Company profile Shenzhen Joint Technology Co., Ltd., established in 1995, specializes in R&D machines for processing mold and parts. We have a high-quality, high-performance R&D, manufacturing, and service team, along with a rigorous and efficient operation system. Our product range includes manual turret milling, CNC machining centers, robots, and automatic lines, sold in over 40 major cities in China and more than 20 countries in Asia, Europe, and the United States. We are dedicated to providing top-class products to our customers, making us a leading machine manufacturer in China
Production base
Honorary qualification
Core technology
FAQ
Q1: Are you trading company or manufacturer? A1: We are factory. Q2: What is your terms of payments? A2: 30% as deposit, 70% should be paid before delivery. Q3: How can I choose the most suitable machines? A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you. Q4: What is the package? Is it suitable for shipment? A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation. Q5: How long is the warranty for machines? A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problem in this guarantee.

---
