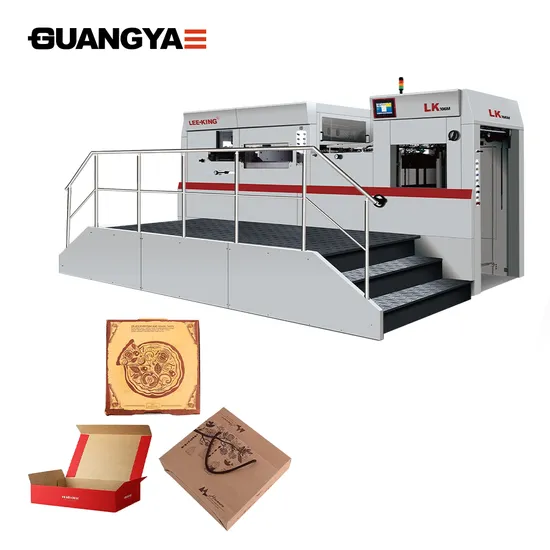

Automatic Die Cutting Machine (LK106M)

Product Description

TECHNICAL PARAMETER

Model	LK106M
Max. sheet size(mm)	1060×770
Min. sheet size(mm)	400×370
Max. die cutting size(mm)	1050×750
Max. feeding pile height (mm)	1350
Max. delivering pile height (mm)	1200
Max. working pressure(T)	300
Power rating(KW)	17.6
Paper range	90 -2000(G/M2) (cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated)
Max. working speed(s/h)	7500
Main motor power(KW)	11
Machine weight(kg)	16000
Gripper Margin(mm)	8-17
Air requirements	0.6MPa, >0.37m³/min
Overall machine dimensions(mm)	6050×4200×2260

MAIN FEATURES
Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function

Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
Host Station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Automatic pressure keeping and pressure reduction function (only foil stamping)
• Imported intermittent mechanism to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning


Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)

Control System
Operating System
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance

*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT

SAMPLES

CERTIFICATE
DELIVERY
The Unique Human Care and Profession Passionate Sales Service System:
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 5 days with professional knowledge.
We focus on customer service, all year non-stop service, personal training and so on.
Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training,exchange management platform and so on.
Realizing the idea of focusing on customer success, creating value to customer.
