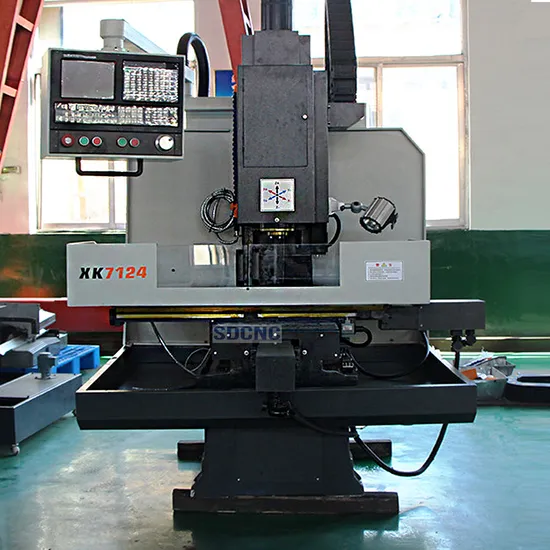

Xk7128 High Precision Universal CNC Mini Milling Machine

Product Description

Detailed Photos
Product Description
The main performance characteristics:
1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.
2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body,
3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,
4. The high speed, high precision and high rigidity spindle unit,
5. The intermittent automatic lubrication.
Application:
1. The product for the X, Y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.
Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,
2. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.
3. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.
4. Can be petty four axis of rotation, in order to meet the special requirements of machining parts Our Advantages

Product Parameters

Item	unit	XK7128
Worktable size	mm	800x280
Worktable loading	Kg	300
X/ Y / Z travel	mm	500x300x400
Spindle end face to working table	mm	80-380
T-slot	mm	3/14/90
Spindle taper		BT40
Distance from spindle center to guide rail surface	mm	370
Spindle speed	rpm	80--6000
Spindle power	Kw	2.2
x/y/z axis rapid traverse	m/min	18/18/18
x/y/z axis cutting feed rate	m/min	10
Positioning accuracy	mm	0.005
Repeat accuracy	mm	0.003
XYZ motor power	Kw	1.5/1.5/1.5
XYZ torque	Nm	6x6x7.7
X/Y/Z Minimum equivalent	mm	0.001
ATC		8 station, umbrella type
Air Pressure Request	kg	4-6
Weight	kg	2500
Machine size	mm	1900x1800x2250
