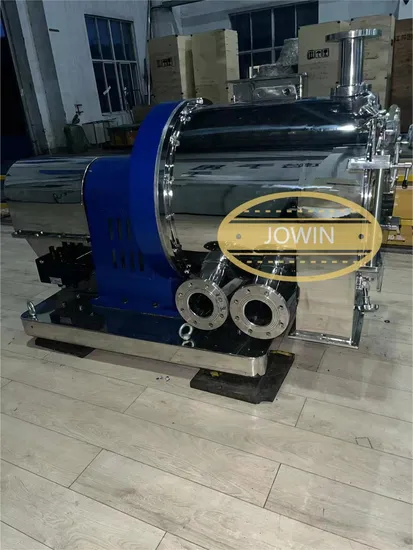

Llw350 Screen Worm Centrifuges Used for Glauber Salt Separation

Product Description

LLW Horizontal Screen Worm Centrifuge Description
Horizontal screen worm centrifuge is an advanced solid-liquid separation equipment featuring low energy consumption, high performance, high automation, high production efficiency, good separation effect, and continuous working capability. After the suspension enters the centrifuge, the liquid phase is discharged out through the screen and the holes on the Bowl wall under the centrifugal force generated by the high-speed revolution of the Bowl, while the solid phase is retained on the screen to form a cake layer and then pushed to the discharge port through the spiral under the action of the relative differential. In this way, automatic and continuous separation of the solid and liquid phases is realized.
Working principle of LLW model: the suspension enters the filter chamber between the drum and the screw from the feed pipe, and enters from the bottom of the drum cone. Under the action of centrifugal force, the liquid phase in the slurry passes through the filter screen inside the drum. The solid phase is trapped in the drum, and moves from the small end of the drum to the large end under the centrifugal force and the differential speed between the screw and the drum. As the rotating diameter of the drum increases, the centrifugal force also increases, and the solid phase reaches the minimum moisture content from the initial high moisture content to the minimum moisture content when it is discharged from the drum, realizing automatic and continuous separation of solid and liquid phases.LLW horizontal thickening screen worm centrifuge has high production efficiency due to its continuous filtration characteristics, continuous automatic feeding and discharging, especially suitable for materials with appropriate particle size and high solid content.
Technical parameters
Main features: Full load type box structrue,rubber damping vibration reduction mod 2.Planetary gear,oil bath lubrication;
3.The inner and outer shafts of centrifuge are made of high quality alloy steel forgings;
4.High strength imported bearing;
5.Wiredrawing mesh form,more wear-resistant,longer service life
And Stainless steel welded shell;

---
