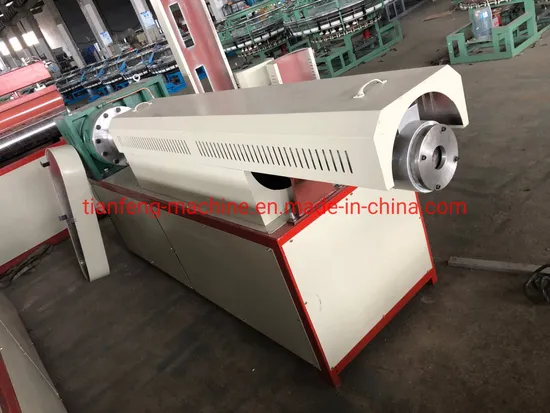

Woven Bag Recycle Machine

Product Description

This machine is used for processing recycling clean PP/PE woven bag, plastic film or another broken old plastic to make them into plastic grains that will be used as raw material again. The screw and Barrel of this machine are made of 38CrMoAlA and done treatment of Nitrogenation.
Application:
To process waste PP/PE plastic into reusable material, to reduce loss of material.
Advantages:
High efficiency
Low maintenance cost
Operator friendly
Best economic benefit
Composition of the Granulator

Standard items 01) First extruder 02) Second extruder 03) Filter & die 04) Cooling water tank 05) Pelleter 06) Electrical and control system

Optional items 1) Vented-screw for first extruder 2) Single hydraulic screen changer 3) Double hydraulic screen changer

Technical Data

Model	SJ-FJ-100A	SJ-FJ-100B	SJ-FJ-130A
Raw material	PP/PE	PP/PE	PP/PE
First extruding screw type	100/12	100/16	130/15
Second extruding screw type	100/8	100/10	130/10
Rotational speed of screw	50 - 60r.p.m.	50 - 70r.p.m.	50 - 70r.p.m.
Extrlusion capacity *	20 - 60kg/h	50 - 100kg/h	100 - 150kg/h
Motor power of first extruder	11kw	18.5kw	30kw
Motor power of second extruder	5.5kw	7.5kw	7.5kw
Motor for pelleter	0.37kw	0.5kw	1.5kw
Heating power	12kw	24kw	42kw
Power supply	380V / 3P / 50Hz / A.C.	380V / 3P / 50Hz / A.C.	380V / 3P / 50Hz / A.C.
Overall dimension (L×W×H)	4500×2000×1100mm	5500×2500×110mm	6000×3000×15

Company Profile
Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State. The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings. Tianfeng Machinery supply not only independent machine with good quality and price, but also the whole production line solution for the whole plant with our good technology and rich experience. We are committed to provide our every customer the best reasonable and optimal production line solution to help them get best ROI (return on investment). Our main products include: high-speed, middle-speed and economic type plastic tape extrusion production line, tape winder, circular loom, plastic extrusion coating machine, laminating machine, flexo printing machine, PP block bottom valve bag making machine (hot air welding), woven bag automatic cutting and sewing machine, plastic monofilament extrusion line, plastic rope making machine and other auxiliary machines. All of these products have successfully covered in 5 continents and more than 60 countries and regions in the globe, such as following: Asia: China, Mongolia, North Korea, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Georgia, Azerbaijan, Indonesia, Malaysia, Vietnam, Thailand, Philippines, Myanmar, Cambodia, Laos, Bangladesh, India, Pakistan, Sri Lanka, Iran, Turkey, Iraq, Syria, Yemen, Jordan, Israe, Lebanon, Afghanistan, etc. Africa: Egypt, Lybia, Tunisia, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Ghana, Nigeria, Chad, Cameroon, South Africa, Zambia, Angola, Zimbabwe, etc. Europe: Russia, White Russia, Italy, Ukraine, Serbia, etc. North America: U.S.A., Canada; South America: Brazil, Mexico, Peru, Venezuela, Cuba, Uruguay, Paraguay, Ecuador, etc. All along, we think that one important factor for our advances is from supporting each other between us and our every customer. We are willing to work together with our customers to develop, grow and succeed.

---
