US$13,000.00-15,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Power Output
14.1kw/2400rpm
Main Control Valves
Hydro Control, Italy
Max. Digging Height
3327mm
Max. Dumping Height
2361mm
Max. Digging Depth
2110mm
Max. Digging Distance
3947mm
Transport Package
Load 4 Units in One 20gp Container
Production Capacity
1200set/Year
Product Description

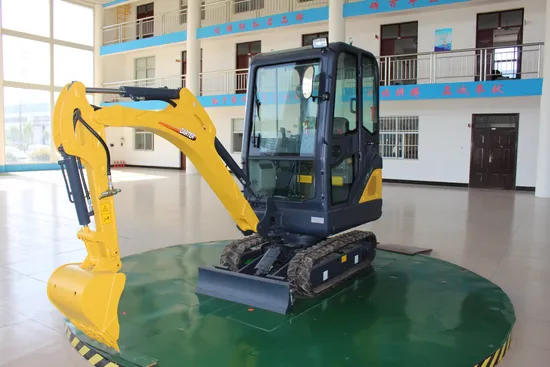

Name:Carter CT18-9BS excavator/mini digger
Advantage Points:
1 Have passed CE certificate.
2 Originally imported Yammar engine, low noise, low fuel consumption, big torque.
3 Main pump:CASAPPA,Valve:Hydro Control, Swing motor:Eaton,Travel motor:Eaton,with reliable quality.
4 Power system and hydraulic system cooperate well to improve 10% dig power.
5 Optional extension track to improve stability.
6 Boom deflexion meet narrow work condition.
7 Optional hydraulic quick hitch, hammer, ripper and drill.
Products Pictures:
Specification:
| Engine | Travel System |
| Model | Yanmar 3TNV76 | Travel motors | Eaton |
| Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×3 |
| Carrier roller quantities | 2×1 |
| No. of cylinder | 3 | Travel shoes | No |
| Bore and stroke | 70x74(mm) | Travel speed | 2.2/4.2(km/h) |
| Displacement | 0.854L | Drawbar pulling force | 11.7kN |
| Power output | 14.1kw/2400rpm | Gradeability | 58%(300) |
| Max. torque | 50N.m/2000rpm | Track shoes thickness | 5mm |
| Hydraulic System | Cab & Electrical System |
| Pump | CASAPPA | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat |
| Type | Axial-piston pump+gear pump |
| Max. discharge flow | 54 (L/min) |
| Max. discharge pressure |
| Boom, arm and bucket | 21 MPa | Voltage | 12V |
| Travel circuit | 12 MPa | Batteries | 1X12V |
| Swing circuit | 9 MPa | Battery capacity | 60Ah |
| Control circuit | 3.9 MPa | Boom, Arm & Bucket |
| Pilot control pump | Gear type | Boom cylinder | Φ60xΦ35xS440-L770 |
| Main control valves | Hydro Control | Arm cylinder | Φ60xΦ35xS330-L600 |
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ30xS300-L560 |
| Swing System | Refilling Capacity & lubrication |
| Swing motor | Eaton | Fuel tank | 32L |
| Swing motor type | Axial-piston motor | Cooling system | 8L |
| Brake | No | Engine oil | 4.4L |
| Swing speed | 8.8 r/min | Hydraulic oil tank | 18L Tank Oil Level |
| 21L Hydraulic System |
| Bucket |
| Type | Backhoe bucket |
| Bucket capacity | 0.04m3 (SAE) |
| Bucket Capacity scope | 0.028-0.095m3 |
| Number of bucket teeth | 4 |
| Bucket width | 450 mm |
| Working ranges |
|
| Boom length | 1830mm |
| A | Max. digging height | 3327mm |
| B | Max. dumping height | 2361mm |
| C | Max. digging depth | 2110mm |
| D | Max. vertical digging depth | 1600mm |
| E | Max. digging distance | 3947mm |
| F | Max. digging radius at ground level | 3889mm |
| Digging Force (ISO6015) |
| Arm length | 950mm |
| A | Bucket digging force | 14.8 KN |
| B | Arm digging force | 10.2 KN |
| Overall Dimensions |
| A | Overall length | 3867mm | G | Tail swing radius | 1072mm |
| B | Overall width | 1000mm | H | Track grounding length | 1210mm |
| C | Overall height(to top of boom) | 1185mm | I | Track length | 1588mm |
| D | Overall height(to top of cab) | 2313mm | J | Track gauge(extension 1090mm) | 760mm |
| E | Counter weight ground clearance | 484mm | K | Track Shoe width | 230mm |
| F | Min. Ground clearance | 175mm | L | Revolving frame width | 1000mm |
|
| Operating Weight and Ground Pressure |
| Operating weight includes basic machine |
| Operating weight | 1800kg(with canopy) / 1900 Kg (with cab) |
| Ground pressure | 28 KPa |
>>
