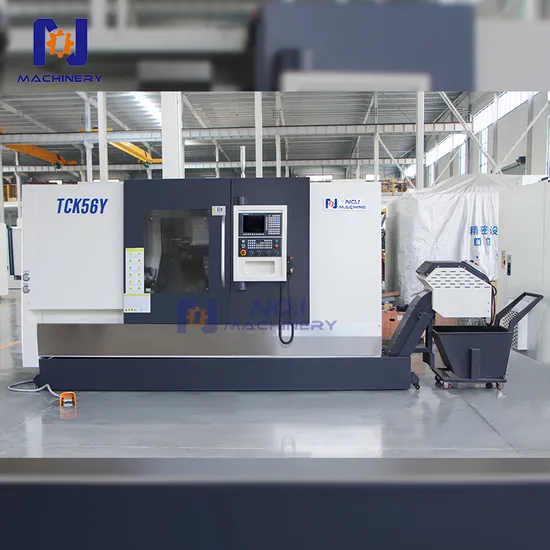

High Precision CNC Inclined Bed Lathe Tck56y Torno CNC Slant Bed Lathe for Industrial Metal

Product Description

Product Description
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 55mm. It can also be processed by C axis linkage.It is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time. integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,drilling, tapping and other composite processing of end and side faces.
Product Parameters

Name		Unit	TCK56Y
Maximum turning diameter on the bed		mm	560
maximum cutting length		mm	500/1000
Maximum cutting diameter		mm	280
Maximum turning diameter on the skateboard		mm	350
Standard cutting diameter		mm	280
Spindle end type and code			A2-6
Spindle hole diameter		mm	65
Maximum passing bar diameter		mm	50
single spindle Headstock	Spindle speed range/ Spindle maximum output torque	r/min/Nm	50~4500
Mainly motor power	30 minutes/continuous	kW	11/15
Standard chuck	Chuck diameter	inch	8²
X-axis rapid traverse speed		m/min	30
Y-axis rapid traverse speed		m/min	12
Z-axis rapid traverse speed		m/min	30
X-axis travel		mm	200
Y-axis travel		mm	±55
Z-axis travel		mm	500-1000
Standard Tool Holder Form			Horizontal 12-station
Tailstock sleeve stroke		mm	150/900
Tailstock spindle taper taper		MT	5#
Machine weight		Kg	4300
Machine tool dimensions		mm	3570*1860*1850

Detailed Photos
1. Adpot 45° one piece slant bed casting structure
2.High speed Taiwan spindle unit, spindle speed 4500rpm.
3.Famous Nanjing/Taiwan Screw
4.X and Z axis Adopts Taiwan Linear rails
5.GSK control system, optional Siemens/Fanuc/Mitsubishi
6.8-station hydraulic turret/12-station optional
7.A2-6 spindle/A2-8 optional
8.GSK original servo main motor

Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.


FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
